KOYO Taper Roller Bearing 32215 And Koyo Bearings In Japan For Worm Reducer 75*130*31 mm

KOYO Taper Roller Bearing 32215 And Koyo Bearings In Japan For Worm Reducer 75*130*31 mm

Products Visitors: 12005

Product Name: KOYO Taper Roller Bearing 32215 And Koyo Bearings In Japan For Worm Reducer 75*130*31 mm
Material: Gcr15 Chrome steel
Level: PO/P6/P5/P4/P2
Download: KOYO Taper Roller Bearing 32215 And Koyo Bearings In Japan For Worm Reducer 75*130*31 mm.pdf

Detailed Product Description: KOYO Taper Roller Bearing 32215 And Koyo Bearings In Japan For Worm Reducer 75*130*31 mm

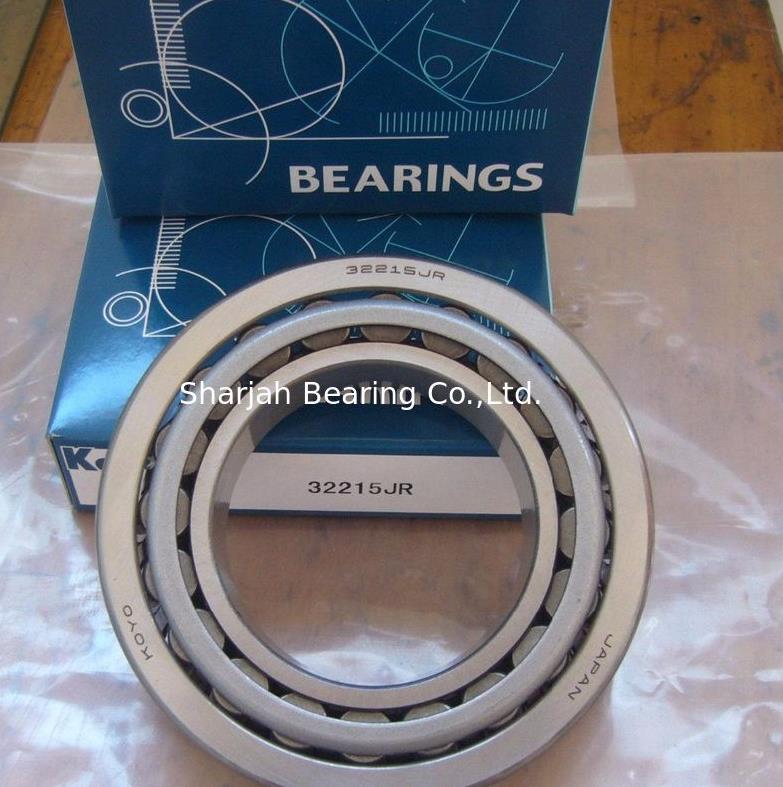

KOYO one way bearing 32215JR Tapered roller bearing 32215JR roller bearing is a bearing having thick outer ring and a stud to which taper rollers are built into and it is a bearing having small friction coefficient and excellent rotational performance designed for outer ring revolution.With the purpose of increasing the load area effectively,the radial gap of bearing 32215JR is smaller than the general taper roller bearings. Therefore, it alleviates the impact load, and a stable long life is gained.

KOYO one way bearing 32215JR Tapered roller bearing 32215JR roller bearing

Related models and specifications of KOYO one way bearing 32215JR

bearing	sizemm				/kN		weight/kg	old meodel
bearing	d	D	T	B	Cr	Cor	W≈	old meodel
32004	20	42	15	15	25.0	28.2	0.095	2007104E
320/22	22	44	15	15	26.0	30.2	0.100	20071/22E
32005	25	47	15	15	28.0	34.0	0.110	2007105E
320/28	28	52	16	16	31.5	40.5	0.142	20071/28E
32006	30	55	17	17	35.8	46.8	0.170	2007106E
320/32	32	58	17	17	36.5	49.2	0.187	20071/32E
32007	35	62	18	18	43.2	59.2	0.224	2007107E
32008	40	68	19	19	51.8	71.0	0.267	2007108E
32009	45	75	20	20	58.5	81.5	0.337	2007109E
32010	50	80	20	20	61.0	89.0	0.366	2007110E
32011	55	90	23	23	80.2	118.0	0.551	2007111E
32012	60	95	23	23	81.8	122.0	0.584	2007112E
32013	65	100	23	23	82.8	128.0	0.620	2007113E
32014	70	110	25	25	105.0	160.0	0.839	2007114E
32015	75	115	25	25	102.0	160.0	0.875	2007115E
32016	80	125	29	29	140.0	220.0	1.270	2007116E
32017	85	130	29	29	140.0	220.0	1.320	2007117E
32018	90	140	32	32	170.0	270.0	1.720	2007118E
32019	95	145	32	32	175.0	280.0	1.790	2007119E
32020	100	150	32	32	172.0	282.0	1.850	2007120E
32021	105	160	35	35	205.0	335.0	2.400	2007121E
32022	110	170	38	38	245.0	402.0	3.020	2007122E
32024	120	180	38	38	242.0	405.0	3.180	2007124E
32026	130	200	45	45	335.0	568.0	4.940	2007126E
32028	140	210	45	45	330.0	568.0	5.150	2007128E
32030	150	225	48	48	368.0	635.0	6.250	2007130E
32032	160	240	51	51	420.0	735.0	7.660	2007132E
32034	170	260	57	57	520.0	920.0	10.400	2007134E
32036	180	280	64	64	640.0	1150.0	14.100	2007136E
32038	190	290	64	64	652.0	1180.0	14.600	2007138E
32040	200	310	70	70	782.0	1420.0	18.900	2007140E
32044	220	340	76	76	908.0	1670.0	24.400	2007144E
32048	240	360	76	76	920.0	1730.0	25.900	2007148E
32052	260	400	87	87	1120.0	2170.0	38.000	2007152E
32056	280	420	87	87	1190.0	2290.0	40.200	2007156E
32060	300	460	100	100	1520.0	2940.0	57.500	2007160E
32064	320	480	100	100	1540.0	3000.0	60.600	2007164E
