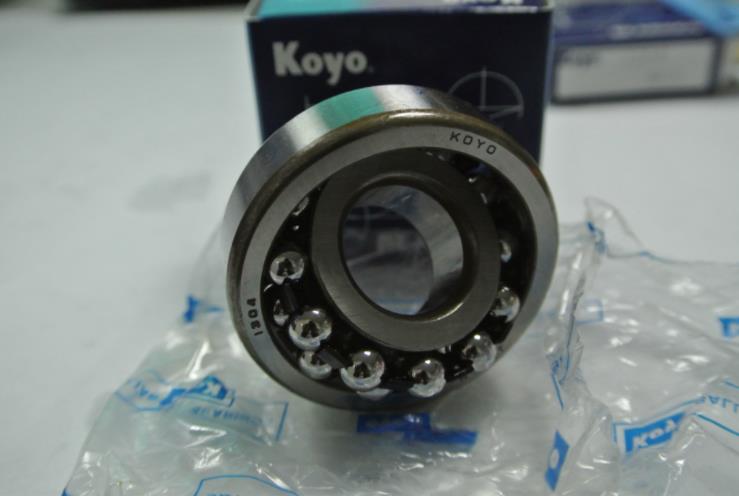

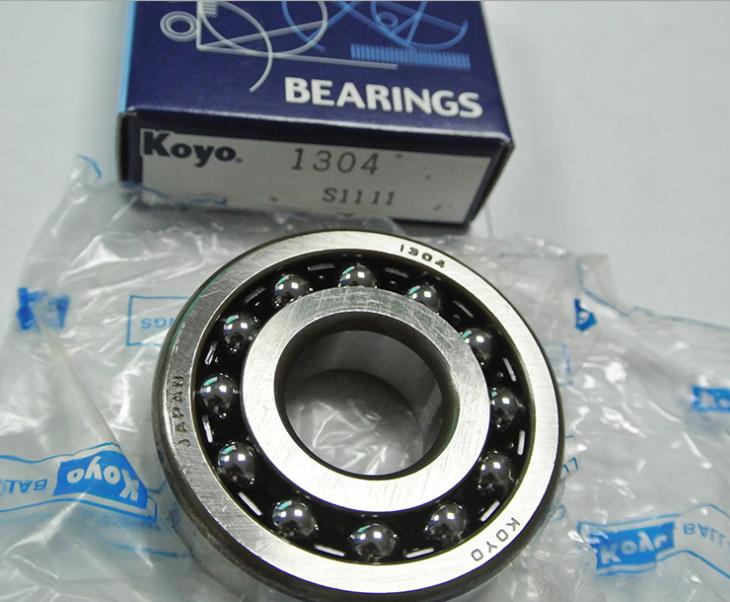

Information of 1304 self-aligning ball bearing
|
Self-aligning ball bearing |
|
|
Original brands |
KOYO |
|
Bore Size: |
20mm |
|
Outside Size: |
52mm |
|
thickness |
15mm |
|
Material |
GCr15,stainless steel |
|
Cr |
12.4KN |
|
Cor |
233KN |
|
Grease |
13000r/min |
|
oil |
15000r/min |
|
Precision |
P0 P6 P5 P4 P2 |
|
Clearance |
C2 C3 C4 C5 |
|
Hardness |
60 |
| Type | Size | Type | Size | Type | Size | Type | Size |
| 1200 | 10x30x9mm | 1300 | 10x35x11mm | 2200 | 10x30x14mm | 2300 | 10x35x17mm |
| 1201 | 12x32x10mm | 1301 | 12x37x12mm | 2201 | 12x32x14mm | 2301 | 12x37x17mm |
| 1202 | 15x35x11mm | 1302 | 15x42x13mm | 2202 | 15x35x14mm | 2302 | 15x42x17mm |
| 1203 | 17x40x12mm | 1303 | 17x47x14mm | 2203 | 17x40x16mm | 2303 | 17x47x19mm |
| 1204 | 20x47x14mm | 1304 | 20x52x15mm | 2204 | 20x47x18mm | 2304 | 20x52x21mm |
| 1205 | 25x52x15mm | 1305 | 25x62x17mm | 2205 | 25x52x18mm | 2305 | 25x62x24mm |
| 1206 | 30x92x16mm | 1306 | 30x72x19mm | 2206 | 30x62x20mm | 2306 | 30x72x27mm |
| 1207 | 35x72x17mm | 1307 | 35x80x21mm | 2207 | 35x72x23mm | 2307 | 35x80x31mm |
| 1208 | 40x80x18mm | 1308 | 40x90x23mm | 2208 | 40x80x23mm | 2308 | 40x90x33mm |
| 1209 | 45x85x19mm | 1309 | 45x100x25mm | 2209 | 45x85x23mm | 2309 | 45x100x36mm |
| 1210 | 50x90x20mm | 1310 | 50x110x27mm | 2210 | 50x90x23mm | 2310 | 50x110x40mm |
| 1211 | 55x100x21mm | 1311 | 55x120x29mm | 2211 | 55x100x25mm | 2311 | 55x120x43mm |
| 1212 | 60x110x22mm | 1312 | 60x130x31mm | 2212 | 60x110x28mm | 2312 | 60x130x46mm |
| 1213 | 65x120x23mm | 1313 | 65x140x33mm | 2213 | 65x120x31mm | 2313 | 65x140x48mm |
| 1214 | 70x125x24mm | 1314 | 70x150x35mm | 2214 | 70x125x31mm | 2314 | 70x150x51mm |
| 1215 | 75x130x25mm | 1315 | 75x160x37mm | 2215 | 75x130x31mm | 2315 | 75x160x55mm |
| 1216 | 80x140x26mm | 1316 | 80x170x39mm | 2216 | 80x140x33mm | 2316 | 80x170x58mm |
| 1217 | 85x150x28mm | 1317 | 85x180x41mm | 2217 | 85x150x36mm | 2317 | 85x180x60mm |
| 1218 | 90x160x30mm | 1318 | 90x190x43mm | 2218 | 90x160x40mm | 2318 | 90x190x64mm |
| 1219 | 95x170x32mm | 1319 | 95x200x45mm | 2219 | 95x170x43mm | 2319 | 95x200x67mm |
| 1220 | 100x180x34mm | 1320 | 100x215x47mm | 2220 | 100x180x46mm | 2320 | 100x215x73mm |
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
