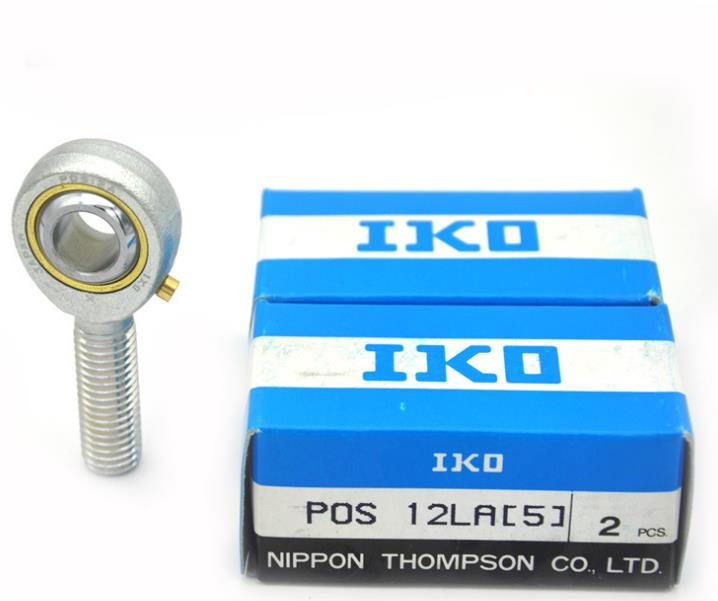

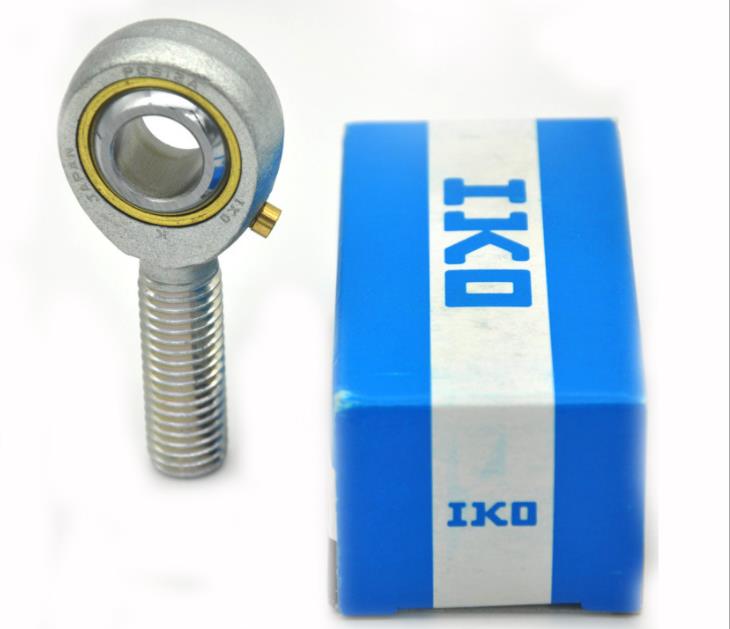

Features
• Maitenance-required
• Housing: carbon steel and white zinc plated
• Steel Ball: chrome steel, precision ground hardened and chrome plated
• Race: Bronze
Dimensions
• Inside Diameter(Bore): 15mm
• Outside Diameter(Head): 40mm
• Thread: M16x1.6 or M16x2.0 (Right Hand)
• Total Length: 86mm
• Maximum Angular Misalignment: 15 Degree
• Center of Ball to Bottom of Shank: 66mm
• Length Through Bore: 21mm
• Thread Length: 40mm
| ITEM | Dimension (mm) | Weight | ||||||||||||
| Right hand | Lift hand | d | d3 | B | C1 | L1 | d1 | d2 | h | L2 | dk | R1S | a | kg |
| 6g | min | ≈ | ||||||||||||
| POS 5 | POSL 5 | 5 | M5x0.8 | 8 | 6 | 20 | 7.7 | 16 | 33 | 41 | 11.11 | 0.3 | 13 | 0.013 |
| POS 6 | POSL 6 | 6 | M6x1.0 | 9 | 6.75 | 22 | 8.96 | 18 | 36 | 45 | 12.7 | 0.3 | 13 | 0.02 |
| POS 8 | POSL 8 | 8 | M8x1.25 | 12 | 9 | 25 | 10.4 | 22 | 42 | 53 | 15.875 | 0.3 | 14 | 0.03 |
| POS 10 | POSL 10 | 10 | M10x1.5 | 14 | 10.5 | 29 | 12.9 | 26 | 48 | 61 | 19.05 | 0.3 | 13 | 0.055 |
| POS 12 | POSL 12 | 12 | M12x1.75 | 16 | 12 | 33 | 15.4 | 30 | 54 | 69 | 22.225 | 0.3 | 13 | 0.085 |
| POS 12-1 | POSL 12-1 | 12 | M12x1.25 | 16 | 12 | 33 | 15.4 | 30 | 54 | 69 | 22.225 | 0.3 | 13 | 0.085 |
| POS 14 | POSL 14 | 14 | M14x2.0 | 19 | 13.5 | 36 | 16.9 | 34 | 60 | 77 | 25.4 | 0.3 | 16 | 0.14 |
| POS 16 | POSL 16 | 16 | M16x2.0 | 21 | 15 | 40 | 19.4 | 40 | 66 | 86 | 28.575 | 0.3 | 15 | 0.21 |
| POS 16-1 | POSL 16-1 | 16 | M16x1.5 | 21 | 15 | 40 | 19.4 | 40 | 66 | 86 | 28.575 | 0.3 | 15 | 0.21 |
| POS 18 | POSL 18 | 18 | M18x1.5 | 23 | 16.5 | 44 | 21.9 | 44 | 72 | 94 | 31.75 | 0.3 | 15 | 0.28 |
| POS 20 | POSL 20 | 20 | M20x1.5 | 25 | 18 | 47 | 24.4 | 50 | 78 | 103 | 34.925 | 0.3 | 14 | 0.38 |
| POS 22 | POSL 22 | 22 | M22x1.5 | 28 | 20 | 51 | 25.8 | 54 | 84 | 111 | 38.1 | 0.3 | 15 | 0.48 |
| POS 25 | POSL 25 | 25 | M24x2.0 | 31 | 22 | 57 | 29.6 | 60 | 94 | 124 | 42.86 | 0.3 | 15 | 0.64 |
| POS 28 | POSL 28 | 28 | M27x2.0 | 35 | 24 | 62 | 32.3 | 66 | 103 | 136 | 47.63 | 0.3 | 15 | 0.96 |
| POS 30 | POSL 30 | 30 | M30x2.0 | 37 | 25 | 66 | 34.8 | 70 | 110 | 145 | 50.8 | 0.3 | 17 | 1.1 |
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
