Original Import P4 Precision Spindle Bearing Angular Contact Ball Bearing 7006CTYNSULP4

Original Import P4 Precision Spindle Bearing Angular Contact Ball Bearing 7006CTYNSULP4

Products Visitors: 11900

Product Name: Original Import P4 Precision Spindle Bearing Angular Contact Ball Bearing 7006CTYNSULP4
Material: Gcr15 Chrome steel
Level: PO/P6/P5/P4/P2
Download: Original Import P4 Precision Spindle Bearing Angular Contact Ball Bearing 7006CTYNSULP4.pdf

Detailed Product Description: Original Import P4 Precision Spindle Bearing Angular Contact Ball Bearing 7006CTYNSULP4

Product Description

Original Import P4 Precision Spindle Bearing Angular Contact Ball Bearing 7006CTYNSULP4

The Advantages:

1.bear radial load and axial load

2.The larger the contact angle, the higher the axial bearing capacity

3.Advanced grade technology

4.Quiet and smooth operation even at high speed

5.Super finished raceways

6.Offer products in 15,25 and 40 degree angles

Type

a=15 °7000C

a=25 °7000AC

a=40 °7000B

Matched angular contact ball bearings

Single row angular contact ball bearings

Double row angular contact ball bearing

Four-point contact ball bearings

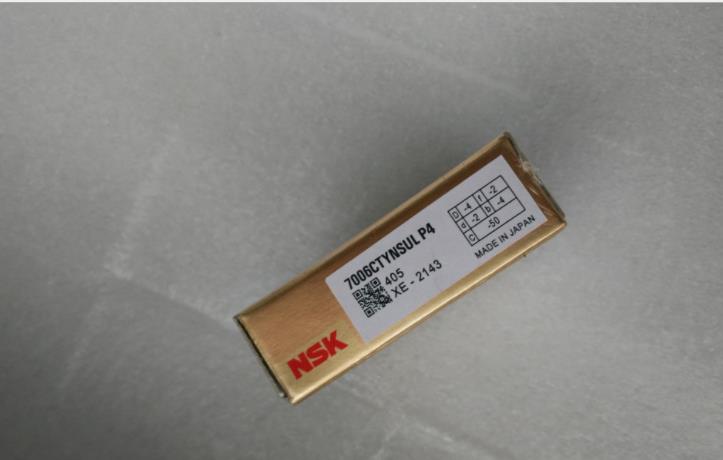

N S K 7006CTYNSULP4 SUPER PRECISION ANGULAR CONTACT SPINDLE BEARINGS

Brand N S K

Type Angular Contact Ball Bearings

Contact angle C: 15 Degree

Cage material TYN: Ball guided polyamide Resin

Rings material Bearing steel (SUJ2)

Rolling elements material Bearing steel (SUJ2)

Arrangement SU: universal Single row for matched set

Accuracy rating P4: ISO Class 4 (ABEC – 7)

Limiting speeds Grease: 23,600 rpm Oil: 35,300 rpm

Dynamic load rating 15.1 KN

Static load rating 10.3 KN

Axial load rating 6.85 KN

Dimensions 30mm x 55mm x 13mm

Quantity Two bearings

Made in Japan by N S K ltd.

THIS MATCHED SET OF TWO N S K 7006CTYNSULP4: REPLACES THE FOLLOWING

N S K 7006CTYNDBLP4 N S K 7006CTRDULP4Y N S K 7006CTRDULP3

NA CHI 7006CYDUP4 NA CHI 7006CYDU/GLP4

F A G 7006 CT P4S DUL

S K F 7006CD/P4A S K F 7006CD/P4A DBA

FA FNIR 2MM9106WI DUL

BA RDEN 106HDL

R HP 7006CTDULP4

Bearing No.
Bearing No.
7006CTYNSULP4	7008CTYNSULP5
7006CTYNDULP4	7008CTYNSULP4
7007CTYNSULP4	7008CTYNDULP4
7007CTYNDBLP5	7008A5TYNDULP4
7007CTYNDULP4	7009CTYNDULP4
7007A5TYNSULP4	7009CTYNSULP4
7008CTYNDBLP5	7009CTYNDBLP5
7014CTYNSULP4	7009CTYNSULP5
7014CTYNDULP4	7010CTYNSULP4
7014A5TYNSULP4	7010CTYNDULP4
7015CTYNDBLP4	7010CTYNDBLP5
7015CTYNDULP4	7010CTYNSULP5
7015CTYNSULP4	7010A5TYNSULP4
7017CTYNSULP4	7011CTYNDULP4
7019CTYNSULP4	7011CTYNSULP4
7022CTYNSULP4	7013CTYNSULP5
7201CTYNDULP4	7016CTYNDULP4
7202CTYNDBLP5	7018CTYNSULP4
7216CTYNSULP4	7021CTYNSULP4
7003CTYNSULP5	7200CTYNDULP4
7004CTYNDULP4	7202CTYNDULP4
7004CTYNDULP5	7203CTYNSULP5
7004CTYNDBLP4	7209CTYNSULP4
7004CTYNDBLP5	7209CTYNDBLP5
7004CTYNSULP5	7209CTYNDULP4
7005CTYNDULP4	7209CTYNSULP5
7012CTYNSULP4	7210CTYNDULP4
7012CTYNSULP5	7205CTYNDULP4
7012CTYNDBLP5	7205CTYNSULP4
7013CTYNSULP4	7206CTYNDULP4
7013A5TYNSULP4	7206CTYNSULP4
7015CTYNDBLP5	7206CTYNDBLP4
7017CTYNDULP4	7206CTYNDBLP4
7020CTYNSULP4	7206CTYNDBLP5
7024CTYNSULP4	7206CTYNSULP5
7201CTYNDBLP5	7207CTYNSULP4
7202CTYNSULP5	7207CTYNDULP4
7212CTYNDULP4	7207CTYNDBLP5
7212CTYNSULP4	7207CTYNSULP5
7213CTYNSULP4	7203CTYNDULP4
7214CTYNSULP4	7203CTYNSULP4
7215CTYNSULP4	7204CTYNSULP4
7000CTYNDBLP4	7204CTYNSULP5
7000CTYNDBLP5	7204CTYNDULP4
7001CTYNP5	7204CTYNDBLP5
7001CTYNDBLP5	7204CTYNDBLP4
7001CTYNDULP4	7204CTYNDBLP4
7002CTYNSULP4	7205CTYNSULP5
7011A5TYNSULP4	7205CTYNDBLP5
7011CTYNSULP5	7208CTYNSULP4
7012CTYNDULP4	7208CTYNDBLP4
7012CTYNDBLP4	7208CTYNDULP4
7013CTYNDULP4	7208CTYNDBLP5
7016CTYNSULP4	7208CTYNSULP5
7018CTYNDULP4	7210CTYNSULP4
7020CTYNDULP4	7210CTYNDBLP5
7200CTYNSULP4	7210CTYNSULP5
7202CTYNSULP4	7211CTYNSULP4
7203CTYNDBLP5	7211CTYNDULP4

Principal dimensions			Basic load ratings		Fatigue load limit	Attainable speeds		Mass	Designation
			dynamic	static	Fatigue load limit	Grease	Oil-air
d	D	B	C	C0	Pu	lubrication	lubrication
mm			kN	kN	kN	r/min		kg	/
6	17	6	2.03	0.765	0.032	120000	180000	0.006	706 CD/P4A
6	17	6	2.03	0.765	0.032	120000	180000	0.006	706 CD/P4AH
6	17	6	2.03	0.765	0.032	140000	220000	0.005	706 CD/HCP4A
6	17	6	2.03	0.765	0.032	140000	220000	0.005	706 CD/HCP4AH
6	17	6	1.95	0.75	0.032	110000	160000	0.006	706 ACD/P4A
6	17	6	1.95	0.75	0.032	110000	160000	0.006	706 ACD/P4AH
6	17	6	1.95	0.75	0.032	130000	190000	0.005	706 ACD/HCP4A
6	17	6	1.95	0.75	0.032	130000	190000	0.005	706 ACD/HCP4AH
6	17	6	1.56	0.5	0.022	140000	220000	0.006	706 CE/P4A
6	17	6	1.56	0.5	0.022	140000	220000	0.006	706 CE/P4AH
6	17	6	1.56	0.5	0.022	170000	260000	0.005	706 CE/HCP4A
6	17	6	1.56	0.5	0.022	170000	260000	0.005	706 CE/HCP4AH
6	17	6	1.51	0.49	0.02	127000	195000	0.006	706 ACE/P4A
6	17	6	1.51	0.49	0.02	127000	195000	0.006	706 ACE/P4AH
6	17	6	1.51	0.49	0.02	150000	230000	0.005	706 ACE/HCP4A
6	17	6	1.51	0.49	0.02	150000	230000	0.005	706 ACE/HCP4AH
7	19	6	1.86	0.62	0.026	133000	205000	0.006	707 ACE/HCP4AH
7	19	6	1.86	0.62	0.026	133000	205000	0.006	707 ACE/HCP4A
7	19	6	1.86	0.62	0.026	112000	175000	0.007	707 ACE/P4AH
7	19	6	1.86	0.62	0.026	112000	175000	0.007	707 ACE/P4A
7	19	6	1.95	0.64	0.027	150000	230000	0.006	707 CE/HCP4AH
7	19	6	1.95	0.64	0.027	150000	230000	0.006	707 CE/HCP4A
7	19	6	1.95	0.64	0.027	127000	190000	0.007	707 CE/P4AH
7	19	6	1.95	0.64	0.027	127000	190000	0.007	707 CE/P4A
7	19	6	2.42	0.95	0.04	110000	170000	0.007	707 ACD/HCP4AH
7	19	6	2.42	0.95	0.04	110000	170000	0.007	707 ACD/HCP4A
7	19	6	2.42	0.95	0.04	95000	140000	0.008	707 ACD/P4AH
7	19	6	2.42	0.95	0.04	95000	140000	0.008	707 ACD/P4A
7	19	6	2.51	0.98	0.04	120000	190000	0.007	707 CD/HCP4AH
7	19	6	2.51	0.98	0.04	120000	190000	0.007	707 CD/HCP4A
7	19	6	2.51	0.98	0.04	100000	160000	0.008	707 CD/P4AH
7	19	6	2.51	0.98	0.04	100000	160000	0.008	707 CD/P4A
7	22	7	2.96	1.16	0.049	80000	120000	0.013	727 CD/P4A
7	22	7	2.96	1.16	0.049	95000	150000	0.012	727 CD/HCP4A
7	22	7	2.91	1.12	0.048	70000	110000	0.013	727 ACD/P4A
7	22	7	2.91	1.12	0.048	85000	130000	0.012	727 ACD/HCP4A
8	19	6	1.74	0.63	0.027	120000	185000	0.007	719/8 CE/P4AH
8	19	6	1.74	0.63	0.027	120000	185000	0.007	719/8 CE/P4A
8	19	6	1.74	0.63	0.027	145000	220000	0.006	719/8 CE/HCP4AH
8	19	6	1.74	0.63	0.027	145000	220000	0.006	719/8 CE/HCP4A
8	19	6	1.68	0.6	0.026	109000	165000	0.007	719/8 ACE/P4A
8	19	6	1.68	0.6	0.026	109000	165000	0.007	719/8 ACE/P4AH
8	19	6	1.68	0.6	0.026	130000	200000	0.006	719/8 ACE/HCP4A
8	19	6	1.68	0.6	0.026	130000	200000	0.006	719/8 ACE/HCP4AH
8	22	7	2.29	0.765	0.032	115000	180000	0.011	708 ACE/HCP4AH
8	22	7	2.29	0.765	0.032	115000	180000	0.011	708 ACE/HCP4A
8	22	7	2.29	0.765	0.032	98000	150000	0.012	708 ACE/P4AH
8	22	7	2.29	0.765	0.032	98000	150000	0.012	708 ACE/P4A
8	22	7	2.34	0.8	0.034	130000	200000	0.011	708 CE/HCP4A
8	22	7	2.34	0.8	0.034	130000	200000	0.011	708 CE/HCP4AH
8	22	7	2.34	0.8	0.034	109000	165000	0.012	708 CE/P4A
8	22	7	2.34	0.8	0.034	109000	165000	0.012	708 CE/P4AH
8	22	7	3.19	1.34	0.056	95000	150000	0.011	708 ACD/HCP4A
8	22	7	3.19	1.34	0.056	95000	150000	0.011	708 ACD/HCP4AH
8	22	7	3.25	1.37	0.057	110000	160000	0.011	708 CD/HCP4AH
8	22	7	3.19	1.34	0.056	80000	120000	0.012	708 ACD/P4A
8	22	7	3.19	1.34	0.056	80000	120000	0.012	708 ACD/P4AH
8	22	7	3.25	1.37	0.057	110000	160000	0.011	708 CD/HCP4A
8	22	7	3.25	1.37	0.057	90000	130000	0.012	708 CD/P4A
8	22	7	3.25	1.37	0.057	90000	130000	0.012	708 CD/P4AH
8	24	8	3.71	1.37	0.057	70000	110000	0.017	728 CD/P4A
8	24	8	3.71	1.37	0.057	85000	130000	0.015	728 CD/HCP4A
8	24	8	3.58	1.34	0.057	67000	100000	0.017	728 ACD/P4A
8	24	8	3.58	1.34	0.057	75000	120000	0.015	728 ACD/HCP4A
9	20	6	2.03	0.8	0.034	109000	165000	0.008	719/9 CE/P4AH
9	20	6	2.03	0.8	0.034	109000	165000	0.008	719/9 CE/P4A
9	20	6	2.03	0.8	0.034	133000	200000	0.007	719/9 CE/HCP4AH
9	20	6	2.03	0.8	0.034	133000	200000	0.007	719/9 CE/HCP4A
9	20	6	1.95	0.765	0.032	100000	150000	0.008	719/9 ACE/P4A
9	20	6	1.95	0.765	0.032	100000	150000	0.008	719/9 ACE/P4AH
9	20	6	1.95	0.765	0.032	120000	180000	0.007	719/9 ACE/HCP4A
9	20	6	1.95	0.765	0.032	120000	180000	0.007	719/9 ACE/HCP4AH
9	24	7	2.51	0.9	0.038	106000	165000	0.013	709 ACE/HCP4AH
9	24	7	2.51	0.9	0.038	106000	165000	0.013	709 ACE/HCP4A
9	24	7	2.51	0.9	0.038	90000	137000	0.014	709 ACE/P4AH
9	24	7	2.51	0.9	0.038	90000	137000	0.014	709 ACE/P4A
9	24	7	2.6	0.93	0.04	120000	180000	0.013	709 CE/HCP4A
