According requirement taper roller bearing TIMKEN 32017X with competive price

According requirement taper roller bearing TIMKEN 32017X with competive price

Products Visitors: 11235

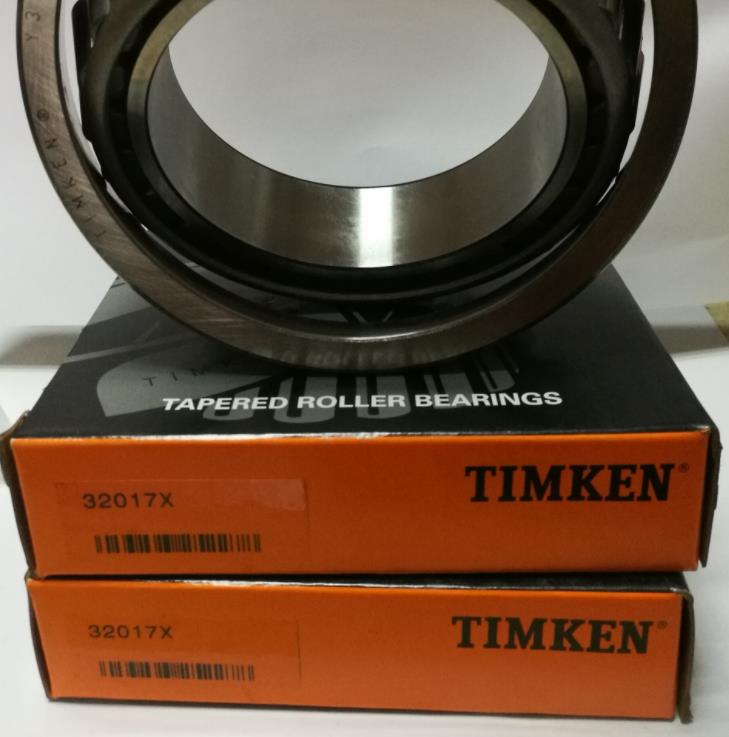

Product Name: According requirement taper roller bearing TIMKEN 32017X with competive price
Material: Gcr15 Chrome steel
Level: PO/P6/P5/P4/P2
Download: According requirement taper roller bearing TIMKEN 32017X with competive price.pdf

Detailed Product Description: According requirement taper roller bearing TIMKEN 32017X with competive price

Double row tapered roller bearings outer ring (or inner) is a whole. Two inner (or outer) face similar small, middle spacer, clearance by the spacer thickness is adjusted, it can also be used to adjust the thickness of the spacer double row tapered roller bearings preloaded.

Name	tapered roller bearings
Bearing No.	32017X tapered roller bearings
Cage	Steel
Brand	TIMKEN
Service	OEM Customized Services
Certificate	ISO9001:2008
Size	8513029mm
Precision	P0 P2 P4 P5 P6
Clearance	C2,C3,C4,C5
Application	automotive, railway rolling stock axle box, tractor, machine tool, electric machine, water pump, cranes, elevator, agricultural machinery and textile machinery,rolling mill, mining, metallurgical, plastic machinery ect.
Sample Policy	Sample is available but we need to charge the freight cost.And we will reduce this part expense from the total value when placing order.
Package	1.industrial package 2.according to clients' requirement

TAPER ROLLER BEARINGS PART NUMBER REFERENCE LIST:

Model	Dimensions(mm)			Weight(kg)	Model	Dimensions(mm)			Weight(kg)
Model	d	D	T	Weight(kg)	Model	d	D	T	Weight(kg)
30202	15	35	11.75	0.053	32207	35	72	24.25	0.456
30203	17	40	13.25	0.079	32208	40	80	24.75	0.549
30204	20	47	15.25	0.127	32209	45	85	24.75	0.602
30205	25	52	16.25	0.157	32210	50	90	24.75	0.644
30206	30	62	17.25	0.238	32211	55	100	26.75	0.86
30207	35	72	18.25	0.34	32212	60	110	29.75	1.18
30208	40	80	19.75	0.438	32213	65	120	32.75	1.55
30209	45	85	20.75	0.488	32214	70	125	33.25	1.66
30210	50	90	21.75	0.558	32215	75	130	33.25	1.72
30211	55	100	22.75	0.736	32216	80	140	35.25	2.13
30212	60	110	23.75	0.93	32217	85	150	38.5	2.64
30213	65	120	24.75	1.18	32218	90	160	42.5	3.41
30214	70	125	26.25	1.3	32219	95	170	45.5	4.22
30215	75	130	27.25	1.43	32220	100	180	49	5.05
30216	80	140	28.25	1.69	32221	105	190	53	6.26
30217	85	150	30.5	2.12	32222	110	200	56	7.35
30218	90	160	32.5	2.6	32304	20	52	22.25	0.241
30219	95	170	34.5	3.13	32305	25	62	25.25	0.376
30220	100	180	37	3.78	32306	30	72	28.75	0.57
30221	105	190	39	4.52	32307	35	80	32.75	0.765
30222	110	200	41	5.28	32308	40	90	35.25	1.05
30224	120	215	43.5	6.28	32309	45	100	38.25	1.42
30226	130	230	43.75	6.83	32310	50	110	42.25	1.88
30302	15	42	14.25	0.098	32311	55	120	45.5	2.39
30303	17	47	15.25	0.134	32312	60	130	48.5	2.96
30304	20	52	16.25	0.172	32313	65	140	51	3.6
30305	25	62	18.25	0.27	32005X	25	47	15	0.116
30306	30	72	20.75	0.403	32006X	30	55	17	0.172
30307	35	80	22.75	0.538	32007X	35	62	18	0.23
30308	40	90	25.25	0.758	32008X	40	68	19	0.28
30309	45	100	27.25	1.01	32009X	45	75	20	0.354
30310	50	110	29.25	1.28	32010X	50	80	20	0.38
30311	55	120	31.5	1.63	32011X	55	90	23	0.567
30312	60	130	33.5	2.03	32012X	60	95	23	0.608
30313	65	140	36	2.51	32013X	65	100	23	0.646
30314	70	150	38	3.03	32014X	70	110	25	0.869
30315	75	160	40	3.63	32015X	75	115	25	0.925
30316	80	170	42.5	4.27	32016X	80	125	29	1.32
30317	85	180	44.5	5.08	32017X	85	130	29	1.38
30318	90	190	46.5	5.67	32018X	90	140	32

d(mm)	D(mm)	T(mm)	Model
60	110	22	397 394AS	397/394AS
60	110	25.4	29580 29521	29580/29521
60	112.712	30.162	3977 3920	3977/3920
60	112.712	30.162	3977 3925	3977/3925
60	120	29.794	476 472	476/472
60	122.238	33.338	66585 66520	66585/66520
60	125	37	JW6049 JW6010	JW6049/JW6010
60.325	112.712	30.162	3980 3925	3980/3925
60.325	122.238	38.1	HM212044 HM212010	HM212044/HM212010
60.325	122.238	43.658	5582 5535	5582/5535
60.325	123.825	38.1	558 552	558/552
60.325	127	36.512	HM813841A HM813811	HM813841A/HM813811
60.325	127	44.45	65237 65501	65237/65501
60.325	130.175	41.275	637 633	637/633
60.325	135.755	53.975	6376 6320	6376/6320
60.325	136.525	36.512	78238C 78537	78238C/78537
60.325	136.525	41.275	637 632	637/632
60.325	136.525	46.038	65237 65537	65237/65537
60.325	139.7	46.038	H715332 H715310	H715332/H715310
60.325	140.03	36.512	78238C 78551	78238C/78551
60.325	152.4	52.705	HH814542 HH814510	HH814542/HH814510
61.912	112.712	26.967	392 3920	392/3920
61.912	123.825	38.1	554 552A	554/552A
61.912	127	36.512	HM813843 HM813810	HM813843/HM813810
61.912	130.175	36.512	HM911249 HM911210	HM911249/HM911210
61.912	139.7	46.038	H715334 H715310	H715334/H715310
61.912	146.05	41.275	H913843 H913810	H913843/H913810
61.912	152.4	47.625	9180 9121	9180/9121
61.912	152.4	47.625	9181 9121	9181/9121
61.912	158.75	50.8	9181 9120	9181/9120
61.912	158.75	50.8	9180 9120	9180/9120
61.912	158.75	55.562	9178 9120	9178/9120
61.976	99.979	23.812	28990 28919	28990/28919
62.737	100	25.4	28995 28921	28995/28921
63.5	92.075	13.495	LL510749 LL510710	LL510749/LL510710
63.5	104.775	21.433	39250 39412	39250/39412
63.5	107.158	22	39250 39422	39250/39422
63.5	107.95	25.4	29585 29522	29585/29522
63.5	110	22	395 394	395/394
63.5	110	22	395 394AS	395/394AS
63.5	110	22	390A 394AS	390A/394AS
63.5	110	25.4	29586 29521	29586/29521
63.5	110	29.37	3982X 3927AS	3982X/3927AS
63.5	110	30.162	3982 3927X	3982/3927X
63.5	110.058	22	39250 39433	39250/39433
63.5	112.712	26.967	395 3920	395/3920
63.5	112.712	26.967	390A 3920	390A/3920
63.5	112.712	30.162	3982 3925	3982/3925
63.5	112.712	33.338	3982 3926	3982/3926
63.5	117.475	30.162	33251 33462	33251/33462
63.5	120	29.794	477 473	477/473
