Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.
The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated,

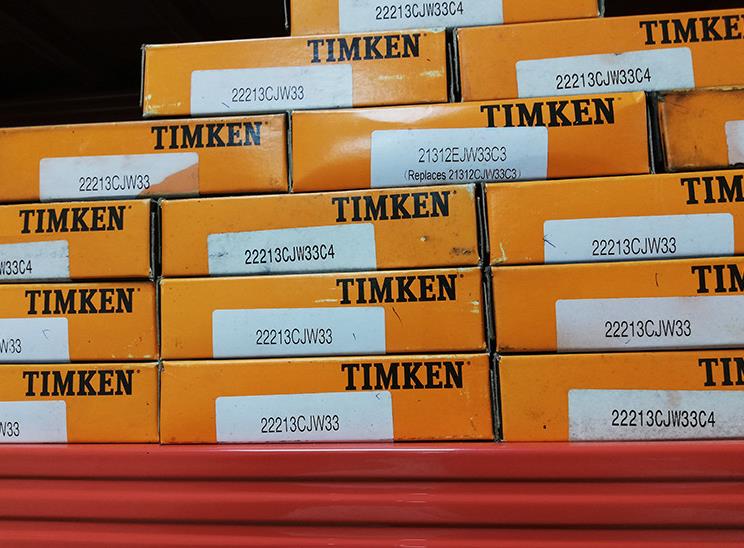

TIMKEN double row spherical roller bearing 22213 CA/W33 Data:
| d | 65 mm | |
| D | 120 mm | |
| B | 31 mm | |
| D1 | 107,3 mm | |
| Da max | 111 mm | |
| d2 | 79,1 mm | |
| da min | 74 mm | |
| ds | 3,2 mm | |
| ns | 6,5 mm | |
| ra max | 1,5 mm | |
| rmin | 1,5 mm | |
| m | 1,55 kg | Mass |
| Cr | 202000 N | Basic dynamic load rating, radial |
| C0r | 210000 N | Basic static load rating, radial |
| e | 0,24 | |
| Y1 | 2,81 | |
| Y2 | 4,19 | |
| Y0 | 2,75 | |
| nG | 7000 1/min | Limiting speed |
| nB | 4200 1/min | Reference speed |
| Cur | 25500 N | Fatigue limit load, radial |
Spherical roller bearing cage show:
pherical roller bearing with cylindrical bore and annular groove with three lubrication holes in outer ring 80mm inside x 170mm outside x 58mm width
Spherical roller bearings are self-aligning bearings that are consequently insensitive to misalignment of the shaft, they have two rows of rollers so they are able to carry heavy radial loads, all sizes are available with cylindrical or tapered bores.
Related categories for Spherical roller bearing as follow
23022 series
23022 23024 23026 23028 23030 23032 23034 23036
23038 23040 23044 23048 23052 23056 23060 23064
23068 23072 23076 23080 23084 23088 23092 23096
24024 series
24024 24026 24028 24030 24032 24034 24036 24038 2
4040 24044 24048 24052 24056 24060 24064 24068 24072
23218 series
23218 23220 23222 23224 23226 23228 23230 23232
23234 23236 23238 23240 23244 23248 23252 23256
23260 23264 23280 23284 23296
22208 series
22208 22209 22210 22211 22212 22213 22214 2
2215 22216 22217 22218 22219 22220 22222 22224
22226 22228 22230 22232 22234 22236 22238 22240
22244 22248 22252 22256 22260
22308 series
22308 22309 22310 22311 22312 22313 22314
22315 22316 22317 22318 22319 22320 22322
22324 22326 22328 22330 22332 22334 22336
22338 22340 22344 22348 22352 22356 22372 22380
23121 series
23121 23122 23124 23126 23128 23130 23132
23134 23136 23138 23140 23144 23148 23152
23156 23160 23164 23168 23172 23176 23180
23184 23188 23192 23196 23936 23940 23948
23960 23972 23976 23996
24122 series
24122 24124 24126 24128 24130
24132 24134 24136 24138 24140 24144 24148 24152 24156 24160 24172
