Hot sale pillow block bearing FYH UCF213 with housing insert bearing

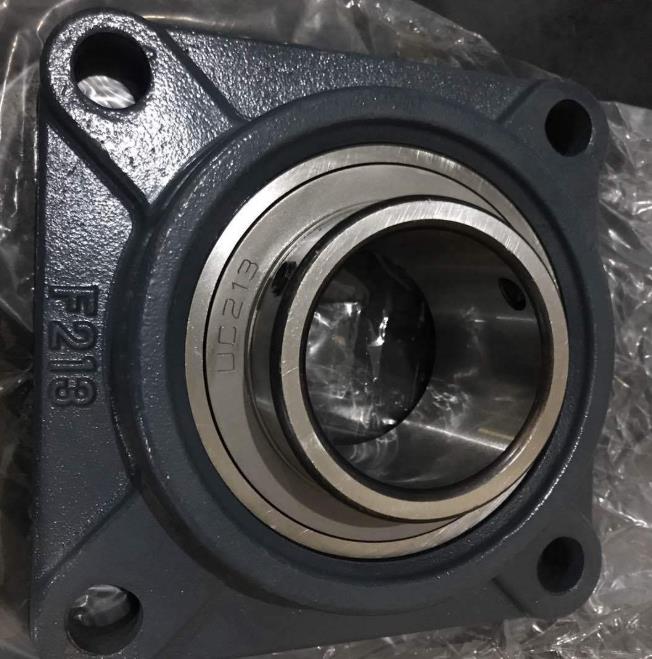

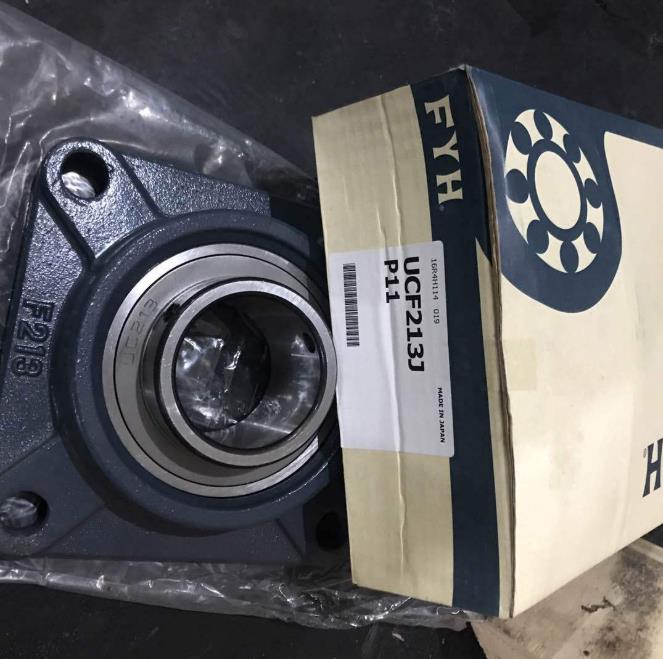

Hot sale pillow block bearing FYH UCF213 with housing insert bearing

Products Visitors: 11130

Product Name: Hot sale pillow block bearing FYH UCF213 with housing insert bearing
Material: Gcr15 Chrome steel
Level: PO/P6/P5/P4/P2
Download: Hot sale pillow block bearing FYH UCF213 with housing insert bearing.pdf

Detailed Product Description: Hot sale pillow block bearing FYH UCF213 with housing insert bearing

UC213 UCF213 UCP13 With large quantity Pillow Block Bearing

earing No.	Dimensions mm inch										Bolt Size mm inch
earing No.	d	a	e	i	g	l	s	z	B	n	Bolt Size mm inch
UCF201	12	86	64	15	12	25.5	12	33.3	31	12.7	M10
UCF201-8	1/2	3-3/8	2-33/64	19/32	15/32	1	15/32	1-5/16	1.2205	0.5	3/8
UCF202	15	86	64	15	12	25.5	12	33.3	31	12.7	M10
UCF202-9	9/16	3-3/8	2-33/64	19/32	15/32	1	15/32	1-5/16	1.2205	0.5	3/8
UCF202-10	5/8	3-3/8	2-33/64	19/32	15/32	1	15/32	1-5/16	1.2205	0.5	3/8
UCF203	17	86	64	15	12	25.5	12	33.3	31	12.7	M10
UCF203-11	11/16	3-3/8	2-33/64	19/32	15/32	1	15/32	1-5/16	1.2205	0.5	3/8
UCF204	20	86	64	15	12	25.5	12	33.3	31	12.7	M10
UCF204-12	3/4	3-3/8	2-33/64	19/32	15/32	1	15/32	1-5/16	1.2205	0.5	3/8
UCF205	25	95	70	16	14	27	12	35.8	34.1	14.3	M10
UCF205-13	13/16	3-3/4	2-3/4	5/8	35/64	1-1/16	15/32	1-13/32	1.3425	0.563	3/8
UCF205-14	7/8
UCF205-15	15/16
UCF205-16	1
UCF206	30	108	83	18	14	31	12	40.2	38.1	15.9	M14
UCF206-17	1-1/16	4-1/4	3-17/64	45/64	35/64	1-7/32	15/32	1-19/32	1.5	0.626	1/2
UCF206-18	1-1/8
UCF206-19	1-3/16
UCF206-20	1-1/4
UCF207	35	117	92	19	16	34	14	44.4	42.9	17.5	M14
UCF207-20	1-1/4	4-39/64	3-5/8	3/4	5/8	1-11/32	35/64	1-3/4	1.689	0.689	1/2
UCF207-21	1-5/16
UCF207-22	1-3/8
UCF207-23	1-7/16
UCF208	40	130	102	21	16	36	16	51.2	49.2	19	M14
UCF208-24	1-1/2	5-1/8	4-1/64	53/64	5/8	1-27/64	5/8	2-1/64	1.937	0.748	1/2
UCF208-25	1-9/6	5-1/8	4-1/64	53/64	5/8	1-27/64	5/8	2-1/64	1.937	0.748	1/2
UCF209	45	137	105	22	18	38	16	52.2	49.2	19	M14
UCF209-26	1-5/8	5-13/32	4-9/64	55/64	23/32	1-1/2	5/8	2-1/64	1.937	0.748	1/2
UCF209-27	1-11/16
UCF209-28	1-3/4
UCF210	50	143	111	22	18	40	16	54.6	51.6	19	M16
UCF210-29	1-13/16	5-5/8	4-3/8	55/64	23/32	1-9/16	5/8	2-5/32	2.0315	0.748	5/8
UCF210-30	1-7/8
UCF210-31	1-15/16
UCF210-32	2
UCF211	55	162	130	25	20	43	19	58.4	55.6	22.2	M16
UCF211-32	2	6-3/8	5-1/8	63/64	25/32	1-11/16	3/4	1-5/16	2.189	0.874	5/8
UCF211-33	2-1/16
UCF211-34	2-1/8
UCF211-35	2-3/16
UCF212	60	175	143	29	20	48	19	68.7	65.1	25.4	M16
UCF212-36	2-1/4	6-57/64	5-5/8	1-3/16	25/32	1-57/64	3/4	2-45/64	2.563	1	5/8
UCF212-37	2-5/16
UCF212-38	2-3/8
UCF212-39	2-7/16
UCF213	65	187	149	30	22	50	19	69.7	65.1	25.4	M20
UCF213-40	2-1/2	7-23/64	5-55/64	36966	55/64	1-31/32	3/4		2.563	1
UCF213-41	2-9/16	7-23/64	5-55/64	36966	55/64	1-31/32	3/4		2.563	1
UCF214	70	193	152	31	22	54	19	75.4	74.6	30.2	M20
UCF214-42	2-5/8	7-19/32	5-63/64	1-7/32	55/64	2-1/8	3/4	2-31/32	2.937	1.189	3/4
UCF214-43	2-11/16
UCF214-44	2-3/4
UCF215	75	200	159	34	22	56	19	78.5	77.8	33.3	M20
UCF215-45	2-13/16	7-7/8	6-17/64	1-11/32	55/64	2-7/32	3/4	3-3/32	3.063	1.311	3/4
UCF215-46	2-7/8
UCF215-47	2-15/16
UCF215-48	3
UCF216	80	208	165	34	22	58	23	83.3	82.6	65.1	M20
UCF216-49	3-1/16	8-3/16	6-1/2	1-11/32	55/64	2-9/32	29/32	3-9/323	3.252	2.563	3/4
UCF216-50	3-1/8
UCF216-51	3-3/16
UCF217	85	220	175	36	24	63	23	87.6	85.7	34.1	M20
UCF217-52	3-1/14	8-21/23	6-57/64	1-27/64	15/16	2-15/32	29/32	3-71/16	3.374	1.343	3/4
UCF217-53	3-5/16
UCF217-55	3-7/16
UCF218	90	235	187	40	24	68	23	96.3	96	39.7	M20
UCF218-56	3-1/2	9-1/4	7-23/64	1-37/64	15/16	2-11/16	29/32	3-25/32	3.7795	1.563	3/4
