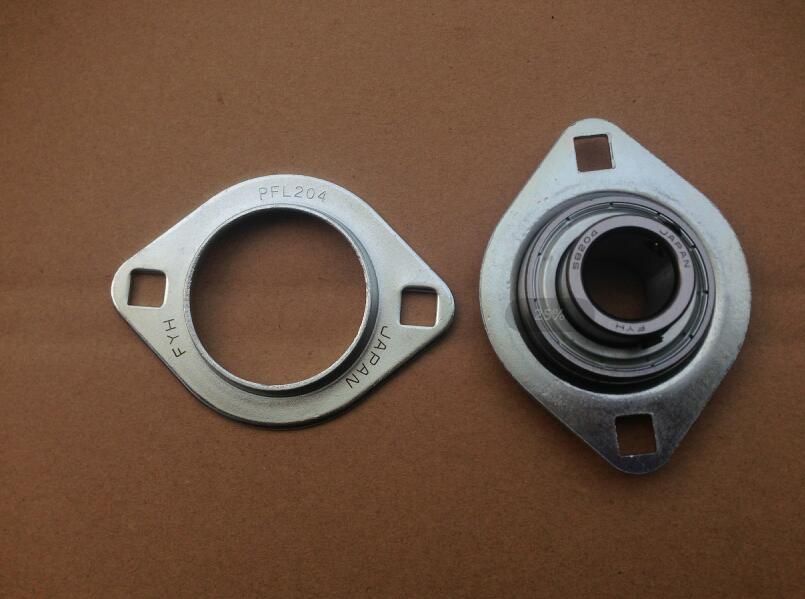

Sheet Steel Housing, Narrow Inner Ring Bearing Insert, Set Screw Locking
| d (mm) | 20 |
| a (mm) | 90 |
| e (mm) | 71.5 |
| b (mm) | 67 |
| m (mm) | 16 |
|
s (mm) |
9 |
| t (mm) | 4 |
| Bi (mm) | 25 |
| n (mm) | 7 |
| Bolt Size | M8 |
| Bearing Insert | SB204 |
| Housing No | PFL204 |
| Ring material | Chrome Steel |
| Steel Ball Material | Chrome Steel |
| Cage Material | Sheet Steel |
| Housing Material | Sheet Steel - Clear Zinc-Plated |
| Weight (kg) | 0.24 |
| Type | Shaft -Ø in mm |
Dimensions in mm | Screw | Bearing insert | Housing | Weight (kg) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | e | b | M | s | t | Bi | n | ||||||
| SBPFL201 | 12 | 81 | 63,5 | 59 | 14 | 7,1 | 4 | 22 | 6 | M6 | SB201 | PFL203 | 0,18 |
| SBPFL202 | 15 | 81 | 63,5 | 59 | 14 | 7,1 | 4 | 22 | 6 | M6 | SB202 | PFL203 | 0,18 |
| SBPFL203 | 17 | 81 | 63,5 | 59 | 14 | 7,1 | 4 | 22 | 6 | M6 | SB203 | PFL203 | 0,18 |
| SBPFL204 | 20 | 90 | 71,5 | 67 | 16 | 9 | 4 | 25 | 7 | M8 | SB204 | PFL204 | 0,24 |
| SBPFL205 | 25 | 95 | 76 | 71 | 18 | 9 | 4 | 27 | 7,5 | M8 | SB205 | PFL205 | 0,27 |
| SBPFL206 | 30 | 113 | 90,5 | 84 | 18 | 11 | 5,2 | 30 | 8 | M10 | SB206 | PFL206 | 0,42 |
| SBPFL207 | 35 | 122 | 100 | 94 | 20 | 11 | 5,2 | 32 | 8,5 | M10 | SB207 | PFL207 | 0,59 |
| SBPFL208 | 40 | 148 | 119 | 100 | 21 | 13,5 | 6,8 | 34 | 9 | M12 | SB208 | PFL208 | 0,9 |
