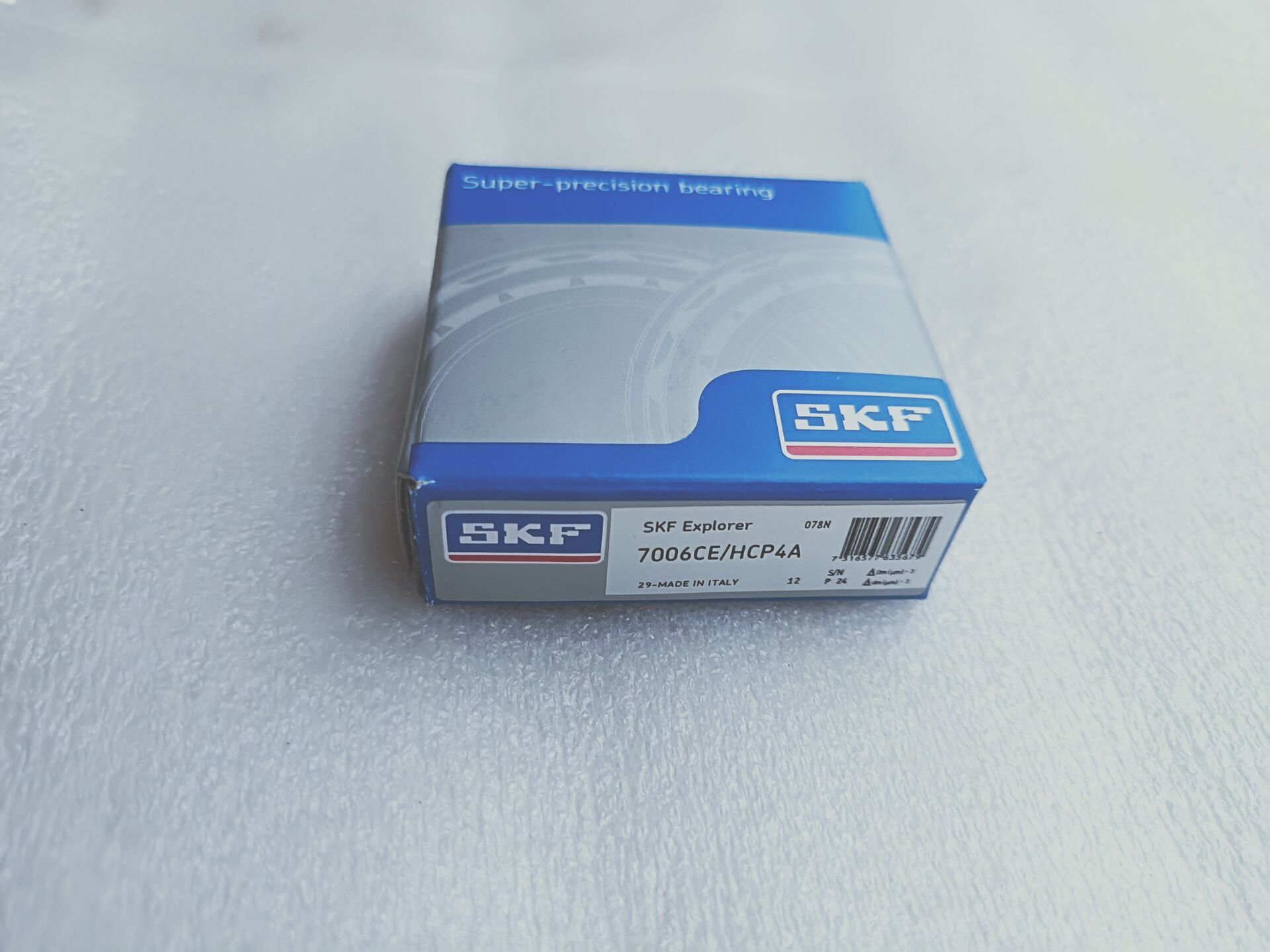

About super precision angular contact ball bearing:
|
Products name |
Super precision Angular Contact Ball bearing |
|
Model NO. |
7006CE/HCP4AL |
|
Ring material |
Chrome Steel, Carbon Steel, Stainless Steel |
|
Material: |
GCr15 GCr15SiMn |
|
Brand: |
SKF |
|
I.D.: |
30 mm |
|
O.D.: |
55 mm |
|
Width: |
13 mm |
|
Type: |
Single row, double row |
|
Precision |
P4 |
Part of the bearing specification :
| Principal dimensions | Designation | ||
| d | D | B | |
| mm | |||
| 20 | 42 | 12 | 7004 ACE/P4AL1 |
| 20 | 42 | 12 | 7004 ACD/P4AH |
| 20 | 42 | 12 | 7004 ACD/P4A |
| 20 | 32 | 7 | 71804 ACD/P4 |
| 20 | 42 | 12 | 7004 CE/HCP4AL |
| 20 | 42 | 12 | 7004 ACE/P4A |
| 20 | 42 | 12 | 7004 ACD/HCP4A |
| 20 | 42 | 12 | 7004 CE/HCP4A |
| 20 | 32 | 7 | 71804 CD/HCP4 |
| 20 | 32 | 7 | 71804 ACD/HCP4 |
| 20 | 47 | 14 | 7204 CD/HCP4A |
| 20 | 42 | 12 | 7004 CE/P4AL |
| 20 | 37 | 9 | 71904 CD/P4A |
| 20 | 37 | 9 | 71904 CE/P4A |
| 20 | 37 | 9 | 71904 ACD/P4A |
| 20 | 37 | 9 | 71904 ACE/P4A |
| 20 | 42 | 12 | 7004 CD/HCP4A |
| 20 | 37 | 9 | 71904 ACD/HCP4A |
| 25 | 47 | 12 | 7005 ACE/HCP4A |
| 25 | 47 | 12 | 7005 CD/HCP4AH |
| 25 | 47 | 12 | 7005 ACE/HCP4AL |
| 25 | 37 | 7 | 71805 ACD/HCP4 |
| 25 | 47 | 12 | 7005 CE/HCP4AH1 |
| 25 | 47 | 12 | 7005 CE/HCP4AL1 |
| 25 | 47 | 12 | 7005 CE/HCP4AL |
| 25 | 47 | 12 | 7005 CE/P4AL |
| 25 | 47 | 12 | 7005 ACE/HCP4AL1 |
| 25 | 42 | 9 | 71905 CE/HCP4A |
| 25 | 47 | 12 | 7005 CE/P4AL1 |
| 25 | 47 | 12 | 7005 ACD/P4AH |
| 25 | 42 | 9 | 71905 ACE/P4AL |
| 25 | 47 | 12 | 7005 ACE/HCP4AH1 |
| 25 | 42 | 9 | 71905 ACE/P4AH |
| 25 | 52 | 15 | 7205 CD/P4A |
| 25 | 47 | 12 | 7005 CE/P4AH1 |
| 25 | 52 | 15 | 7205 CD/HCP4A |
| 25 | 52 | 15 | 7205 ACD/P4A |
| 25 | 42 | 9 | 71905 ACD/HCP4A |
| 25 | 42 | 9 | 71905 CD/P4A |
| 25 | 42 | 9 | 71905 CE/P4A |
| 25 | 47 | 12 | 7005 CE/HCP4A |
| 25 | 37 | 7 | 71805 CD/HCP4 |
| 25 | 47 | 12 | 7005 CD/P4AH |
| 25 | 42 | 9 | 71905 CD/HCP4A |
| 25 | 42 | 9 | 71905 ACE/HCP4AL |
| 25 | 42 | 9 | 71905 ACE/HCP4AH |
| 25 | 37 | 7 | 71805 CD/P4 |
| 25 | 47 | 12 | 7005 ACE/P4AL |
| 25 | 42 | 9 | 71905 ACE/P4A |
| 25 | 42 | 9 | 71905 ACD/P4A |
| 25 | 47 | 12 | 7005 CE/P4A |
| 25 | 47 | 12 | 7005 CD/P4A |
| 25 | 42 | 9 | 71905 ACE/HCP4A |
| 25 | 47 | 12 | 7005 ACD/HCP4AH |
| 25 | 52 | 15 | 7205 ACD/HCP4A |
| 25 | 47 | 12 | 7005 ACD/HCP4A |
| 25 | 47 | 12 | 7005 ACE/P4AL1 |
| 25 | 42 | 9 | 71905 CE/HCP4AL |
| 25 | 42 | 9 | 71905 CE/HCP4AH |
| 25 | 47 | 12 | 7005 ACE/P4AH1 |
| 25 | 47 | 12 | 7005 ACE/P4A |
| 25 | 47 | 12 | 7005 ACD/P4A |
| 25 | 42 | 9 | 71905 CE/P4AL |
| 25 | 42 | 9 | 71905 CE/P4AH |
| 25 | 37 | 7 | 71805 ACD/P4 |
| 25 | 47 | 12 | 7005 CD/HCP4A |
| 30 | 55 | 13 | 7006 ACE/HCP4AL1 |
| 30 | 55 | 13 | 7006 ACE/P4AL |
| 30 | 55 | 13 | 7006 CE/P4AL1 |
| 30 | 55 | 13 | 7006 CE/P4AH1 |
| 30 | 55 | 13 | 7006 CE/HCP4A |
| 30 | 55 | 13 | 7006 ACE/P4AL1 |
| 30 | 62 | 16 | 7206 ACD/HCP4A |
| 30 | 55 | 13 | 7006 ACB/P4A |
| 30 | 55 | 13 | 7006 ACE/P4A |
| 30 | 55 | 13 | 7006 ACD/P4A |
| 30 | 55 | 13 | 7006 CD/P4AH |
| 30 | 55 | 13 | 7006 ACD/HCP4AH |
| 30 | 55 | 13 | 7006 ACE/HCP4AH1 |
| 30 | 55 | 13 | 7006 ACE/P4AH1 |
| 30 | 55 | 13 | 7006 CE/HCP4AL |
| 30 | 47 | 9 | 71906 CD/P4A |
| 30 | 47 | 9 | 71906 CE/P4A |
| 30 | 47 | 9 | 71906 CB/P4A |
| 30 | 55 | 13 | 7006 ACD/P4AH |
| 30 | 55 | 13 | 7006 CD/HCP4AH |
| 30 | 62 | 16 | 7206 CD/P4A |
| 30 | 42 | 7 | 71806 ACD/P4 |
| 30 | 47 | 9 | 71906 CE/P4AL |
| 30 | 55 | 13 | 7006 ACB/HCP4A |
| 30 | 47 | 9 | 71906 CE/P4AH |
| 30 | 47 | 9 | 71906 ACB/HCP4A |
| 30 | 55 | 13 | 7006 CB/HCP4A |
| 30 | 55 | 13 | 7006 CE/P4AL |
| 30 | 55 | 13 | 7006 CB/P4A |
| 30 | 55 | 13 | 7006 CE/P4A |
| 30 | 55 | 13 | 7006 CD/P4A |
| 30 | 47 | 9 | 71906 CB/HCP4A |
| 30 | 47 | 9 | 71906 CD/HCP4A |
| 30 | 47 | 9 | 71906 ACE/HCP4AH |
| 30 | 55 | 13 | 7006 CE/HCP4AH1 |
| 30 | 47 | 9 | 71906 ACE/HCP4AL |
| 30 | 42 | 7 | 71806 ACD/HCP4 |
| 30 | 47 | 9 | 71906 ACE/HCP4A |
| 30 | 55 | 13 | 7006 CE/HCP4AL1 |
| 30 | 62 | 16 | 7206 CD/HCP4A |
| 30 | 62 | 16 | 7206 ACD/P4A |
| 30 | 42 | 7 | 71806 CD/HCP4 |
| 30 | 47 | 9 | 71906 ACE/P4AH |
| 30 | 47 | 9 | 71906 ACE/P4AL |
| 30 | 55 | 13 | 7006 CD/HCP4A |
| 30 | 55 | 13 | 7006 ACE/HCP4AL |
| 30 | 47 | 9 | 71906 ACE/P4A |
| 30 | 47 | 9 | 71906 ACD/P4A |
| 30 | 47 | 9 | 71906 ACB/P4A |
| 30 | 47 | 9 | 71906 CE/HCP4A |
| 30 | 55 | 13 | 7006 ACD/HCP4A |
| 30 | 42 | 7 | 71806 CD/P4 |
| 30 | 47 | 9 | 71906 CE/HCP4AH |
| 30 | 47 | 9 | 71906 CE/HCP4AL |
| 30 | 47 | 9 | 71906 ACD/HCP4A |
| 30 | 55 | 13 | 7006 ACE/HCP4A |
| 35 | 62 | 14 | 7007 CB/P4A |
| 35 | 72 | 17 | 7207 CD/P4A |
| 35 | 62 | 14 | 7007 CE/P4A |
| 35 | 62 | 14 | 7007 CD/P4A |
| 35 | 62 | 14 | 7007 CB/HCP4A |
| 35 | 47 | 7 | 71807 CD/P4 |
| 35 | 55 | 10 | 71907 CE/P4AH |
| 35 | 55 | 10 | 71907 CE/P4AL |
| 35 | 62 | 14 | 7007 CE/HCP4AH1 |
| 35 | 62 | 14 | 7007 ACB/HCP4A |
| 35 | 62 | 14 | 7007 CE/HCP4AL1 |
| 35 | 62 | 14 | 7007 ACE/HCP4A |
| 35 | 62 | 14 | 7007 ACE/P4AL |
| 35 | 55 | 10 | 71907 CB/P4A |
| 35 | 55 | 10 | 71907 CD/P4A |
| 35 | 55 | 10 | 71907 CE/P4A |
| 35 | 62 | 14 | 7007 ACE/HCP4AL1 |
| 35 | 62 | 14 | 7007 ACE/HCP4AH1 |
| 35 | 72 | 17 | 7207 ACD/HCP4A |
| 35 | 47 | 7 | 71807 CD/HCP4 |
| 35 | 62 | 14 | 7007 CD/HCP4AH |
| 35 | 55 | 10 | 71907 CE/HCP4A |
|
|
|
|
||||
|
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
