SKF NCF2952 CV single row full complement Cylindrical roller bearings 260X360X60MM

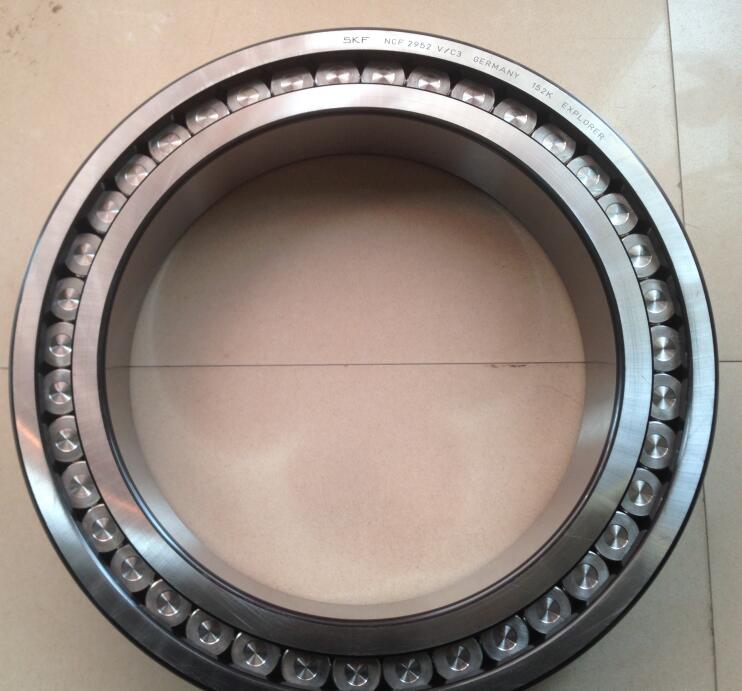

SKF NCF2952 CV single row full complement Cylindrical roller bearings 260X360X60MM

Products Visitors: 12845

Product Name: SKF NCF2952 CV single row full complement Cylindrical roller bearings 260X360X60MM
Material: GCr15 bearing steel
Level: P0 P6 P5 P4
Download: SKF NCF2952 CV single row full complement Cylindrical roller bearings 260X360X60MM.pdf

Detailed Product Description: SKF NCF2952 CV single row full complement Cylindrical roller bearings 260X360X60MM

Single-row, full-complement cylindrical roller bearings.
Features include integral flanges on the inner and outer rings.
Can manage axial loads in one direction and small axial displacement.

The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.

d: 260mm
D:360mm
B: 60mm
Weight: 18.6kg

Dimensions			Dynamic	Static	Speed rate	Limit S/R	Designations
d（mm）	D（mm)	B(mm)	C(kn)	C0(kn)	r/min		Designations
170	260	67	671	1060	1100	1400	NCF 3034 CV
170	310	86	1100	1700	900	1100	NCF 2234 V
170	360	120	1760	2450	700	900	NJG 2334 VH
180	250	42	391	695	1100	1400	NCF 2936 CV
180	280	74	781	1250	1100	1300	NCF 3036 CV
180	380	126	1870	2650	670	800	NJG 2336 VH
190	260	42	440	780	1100	1400	NCF 2938 CV
190	290	75	792	1290	1000	1300	NCF 3038 CV
190	340	92	1250	1900	800	1000	NCF 2238 V
190	400	132	2160	3000	630	800	NJG 2338 VH
200	250	24	176	335	1100	1400	NCF 1840 V
200	280	48	528	965	1000	1300	NCF 2940 CV
200	310	82	913	1530	950	1200	NCF 3040 CV
200	420	138	2290	3200	600	750	NJG 2340 VH
220	270	24	183	365	1000	1200	NCF 1844 V
220	300	48	550	1060	950	1200	NCF 2944 CV
220	340	90	1080	1800	850	1100	NCF 3044 CV
220	400	108	1830	2750	700	850	NCF 2244 V
220	460	145	2550	3550	530	670	NJG 2344 VH
240	300	28	260	510	900	1100	NCF 1848 V
240	320	48	583	1140	850	1100	NCF 2948 CV
240	360	92	1140	1960	800	1000	NCF 3048 CV
240	500	155	2810	3900	500	630	NJG 2348 VH
260	320	28	270	550	800	1000	NCF 1852 V
260	360	60	737	1430	750	950	NCF 2952 CV
260	400	104	1540	2550	700	900	NCF 3052 CV
260	540	165	3410	4800	430	530	NJG 2352 VH
280	350	33	341	695	750	950	NCF 1856 V
280	380	60	880	1730	700	900	NCF 2956 CV
280	420	106	1570	2650	670	850	NCF 3056 CV
