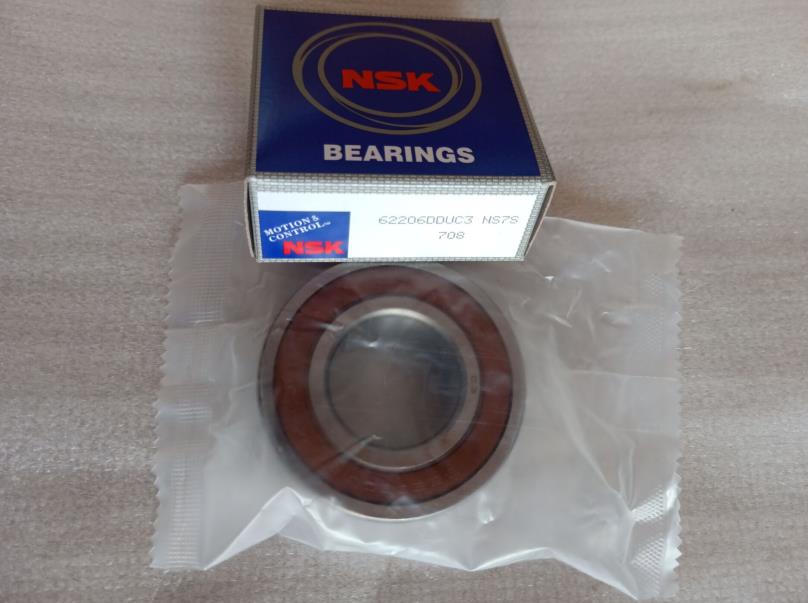

| COMPLETE CODEX DESCRIPTION: | 62206 DDU |
|---|---|
| (d) INNER DIAMETER: | 30 mm |
| (D) OUTDOOR DIAMETER: | 62 mm |
| (B) WIDTH: | 20 mm |
| SEAL: | Rubber seal on both sides |
| BEARING / RADIALGLAPP: | Normally (0.005-0.02mm) |
| OBJECTIVE ENVIRONMENT INV / UTV: | Corresponds to P6 tolerance |
| BREDDTOLERANS: | 0,00-0,06mm |
| SPEED LIMIT: | 7500 rpm |
| BEAUTY DYNAMIC: | 19.5 kN |
| STATISTICS: | 11.2 kN |
| OPTIONS: |
62206 2RS 62206 2RS1 62206 2RSH 62206 2RSR 62206 DDU 62206 LLU |
Bearing No . |
I.D | O.D | B | Load Rating(KN) |
Steel Ball Parameter |
Max speed |
Weight Kg |
||||||||
| d | D | Open | Closed type | Dynamic | Static | No . |
Size | Grease | Oil | ||||||
| mm inch | mm inch | mm inch | mm inch | Cr | Cor | mm | r/min | r/min | |||||||
| 62200 | 10 | 0.3937 | 30 | 1.1811 | 14 | 0.5512 | 14 | 0.5512 | 5.10 | 2.39 | 8 | 4.763 | 25000 | 30000 | 0.04 |
| 62201 | 12 | 0.4724 | 32 | 1.2598 | 14 | 0.5512 | 14 | 0.5512 | 6.10 | 2.75 | 7 | 5.953 | 22000 | 26000 | 0.045 |
| 62202 | 15 | 0.5906 | 35 | 1.378 | 14 | 0.5512 | 14 | 0.5512 | 7.75 | 3.60 | 8 | 5.953 | 19000 | 23000 | 0.054 |
| 62203 | 17 | 0.6693 | 40 | 1.5748 | 16 | 0.6299 | 16 | 0.6299 | 9.60 | 4.60 | 8 | 6.747 | 18000 | 21000 | 0.083 |
| 62204 | 20 | 0.7874 | 47 | 1.8504 | 18 | 0.7086 | 18 | 0.7086 | 12.80 | 6.65 | 8 | 7.938 | 16000 | 18000 | 0.13 |
| 62205 | 25 | 0.9843 | 52 | 2.1645 | 18 | 0.7086 | 18 | 0.7086 | 14.00 | 7.85 | 9 | 7.938 | 13000 | 15000 | 0.15 |
| 62206 | 30 | 1.1811 | 62 | 2.4409 | 20 | 0.7874 | 20 | 0.7874 | 19.50 | 11.30 | 9 | 9.525 | 11000 | 13000 | 0.24 |
| 62207 | 35 | 1.3779 | 72 | 2.8346 | 23 | 0.9055 | 23 | 0.9055 | 25.70 | 15.30 | 9 | 11.112 | 9800 | 11000 | 0.37 |
| 62208 | 40 | 1.5748 | 80 | 3.1496 | 23 | 0.9055 | 23 | 0.9055 | 29.10 | 17.80 | 9 | 12.000 | 8700 | 10000 | 0.44 |
| 62209 | 45 | 1.7716 | 85 | 3.3464 | 23 | 0.9055 | 23 | 0.9055 | 32.50 | 20.40 | 10 | 12.000 | 7800 | 9200 | 0.48 |
| 62210 | 50 | 1.965 | 90 | 3.5464 | 23 | 0.9055 | 23 | 0.9055 | 35.00 | 23.20 | 10 | 12.700 | 7100 | 8300 | 0.52 |
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
