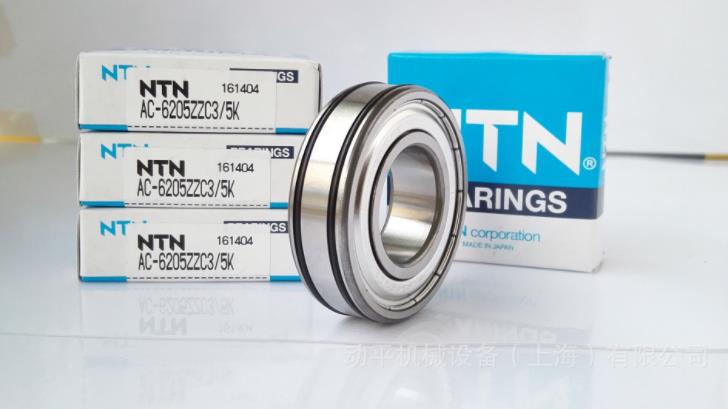

Japan NTN Bearing Imported AC-6205ZZC3 5K Outer Ring with O-Ring Deep groove ball bearings

Japan NTN Bearing Imported AC-6205ZZC3 5K Outer Ring with O-Ring Deep groove ball bearings

Products Visitors: 52255

Product Name: Japan NTN Bearing Imported AC-6205ZZC3 5K Outer Ring with O-Ring Deep groove ball bearings
Material: Gcr15 Chrome steel
Level: PO/P6/P5/P4/P2
Download: Japan NTN Bearing Imported AC-6205ZZC3 5K Outer Ring with O-Ring Deep groove ball bearings.pdf

Detailed Product Description: Japan NTN Bearing Imported AC-6205ZZC3 5K Outer Ring with O-Ring Deep groove ball bearings

Deep groove ball bearing

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. They are of a simple design, robust in operation and easy to maintain.They are available in open and sealed designs. Due to the raceway geometry and the use of balls, deep groove ball bearings can support axial forces in both directions as well as radial forces.Deep groove ball bearings were specially developed in relation to low noise levels and low frictional torque. They are particularly suitable, for example, for use in electrical machinery, ventilators, washing machines and power tools.

Deep groove ball bearing Types:

1 , single row deep groove ball bearings

2 , with a dust cover single row deep groove ball bearings

3 , with a dust cover , a ring of single row deep groove ball bearings

4, the stopper grooves and snap ring of single row deep groove ball bearing outer ring

5 , ball gap deep groove ball bearings

6 , double row deep groove ball bearings

According to the sizes of deep groove ball bearings can be divided into :

( 1 ) miniature bearings ---- nominal diameter size range of 26mm below the bearing ;

( 2 ) small bearings ---- nominal diameter size range of 28-55mm bearings ;

( 3 ) small and medium sized bearing ---- nominal diameter size range of 60-115mm bearings ;

( 4) large bearing ---- nominal diameter size range of 120-190mm bearing

( 5 ) Large bearing ---- nominal diameter size range of 200-430mm bearings ;

( 6 ) large bearings ---- nominal diameter size range of 440mm or more bearings.

Deep groove ball Applications:

Deep groove ball bearings can be used for transmission, instrumentation, motors, appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery , roller skate style , yo-yo , precision instruments, low noise motors, automobiles , motorcycles vehicles.

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
604	4	12	4	0.2	0.97	0.36	36000	44000	0.0021
605	5	14	5	0.2	1.33	0.505	32000	40000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	24000	32000	0.014
6000	10	26	8	0.3	4.55	1.96	22000	30000	0.019
6001	12	28	8	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.83	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	14000	18000	0.08
6006	30	55	13	0.6	13.2	8.3	12000	15000	0.116
6007	35	62	14	1	16	10.3	10000	14000	0.115
6008	40	68	15	1	16.8	11.5	8000	11000	0.19
6200 Series Miniature Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
624	4	13	5	0.2	1.15	0.4	36000	45000	0.0032
625	5	16	5	0.3	1.76	0.68	32000	40000	0.005
626	6	19	6	0.3	2.34	0.885	28000	36000	0.008
627	7	22	7	0.3	3.35	1.4	26000	34000	0.013
628	8	24	8	0.3	4	1.59	24000	32000	0.017
629	9	26	8	0.3	4.55	1.96	22000	30000	0.019
6200	10	30	9	0.6	5.1	2.39	19000	26000	0.03
6201	12	32	10	0.6	6.1	2.75	18000	24000	0.036
6202	15	35	11	0.6	7.75	3.6	17000	22000	0.046
6203	17	40	12	0.6	9.6	4.6	16000	20000	0.065
6204	20	47	14	1	12.8	6.65	14000	18000	0.107
6205	25	52	15	1	14	7.85	12000	16000	0.125
6206	30	62	16	1	19.5	11.3	10000	13000	0.201
6300 Series Miniature Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
6300	10	35	11	0.6	8.2	3.5	18000	24000	0.053
6301	12	37	12	1	9.7	4.2	17000	22000	0.06
6302	15	42	13	1	11.4	5.45	16000	20000	0.082
6303	17	47	14	1	13.5	6.55	15000	19000	0.115
6304	20	52	15	1.1	15.9	7.9	14000	17000	0.144
6800 Series Miniature Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
685	5	11	3	0.15	0.715	0.282	35000	45000	0.0011
686	6	13	3.5	0.15	1.08	0.44	33000	42000	0.0019
687	7	14	3.5	0.15	1.17	0.505	31000	40000	0.0021
688	8	16	4	0.2	1.61	0.715	29000	38000	0.0031
689	9	17	4	0.2	1.72	0.82	28000	36000	0.0032
6800	10	19	5	0.3	1.83	0.925	26000	34000	0.005
6801	12	21	5	0.3	1.92	1.04	22000	30000	0.006
6802	15	24	5	0.3	2.08	1.26	20000	28000	0.007
6803	17	26	5	0.3	2.23	1.46	19000	26000	0.008
6804	20	32	7	0.3	4	2.47	17000	22000	0.019
6805	25	37	7	0.3	4.3	2.95	15000	19000	0.022
6806	30	42	7	0.3	4.7	3.65	13000	17000	0.026
6807	35	47	7	0.3	4.9	4.05	11000	15000	0.029
6900 Series Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
693	3	8	3	0.15	0.56	0.18	44000	52000	0.0006
694	4	11	4	0.15	0.715	0.276	38000	47000	0.0018
695	5	13	4	0.2	1.08	0.43	34000	43000	0.0024
696	6	15	5	0.2	1.35	0.53	32000	40000	0.0038
697	7	17	5	0.3	1.61	0.715	30000	38000	0.0052
698	8	19	6	0.3	1.99	0.865	28000	36000	0.0073
690	9	20	6	0.3	2.48	1.09	27000	34000	0.0082
6900	10	22	6	0.3	2.7	1.27	25000	32000	0.009
6901	12	24	6	0.3	2.89	1.46	20000	28000	0.011
6902	15	28	7	0.3	3.65	2	19000	26000	0.016
6903	17	30	7	0.3	4.65	2.58	18000	24000	0.018
6904	20	37	9	0.3	6.4	3.7	17000	22000	0.036
6905	25	42	9	0.3	7.05	4.55	14000	18000	0.042
6906	30	47	9	0.3	7.25	5	12000	16000	0.048
6907	35	55	10	0.3	9.55	6.85	10000	14000	0.074
