Agricultural machinery High quality Asahi pillow block bearing UC204

Agricultural machinery High quality Asahi pillow block bearing UC204

Products Visitors: 15260

Product Name: Agricultural machinery High quality Asahi pillow block bearing UC204
Material: Gcr15 Chrome steel
Level: PO/P6/P5/P4/P2
Download: Agricultural machinery High quality Asahi pillow block bearing UC204.pdf

Detailed Product Description: Agricultural machinery High quality Asahi pillow block bearing UC204

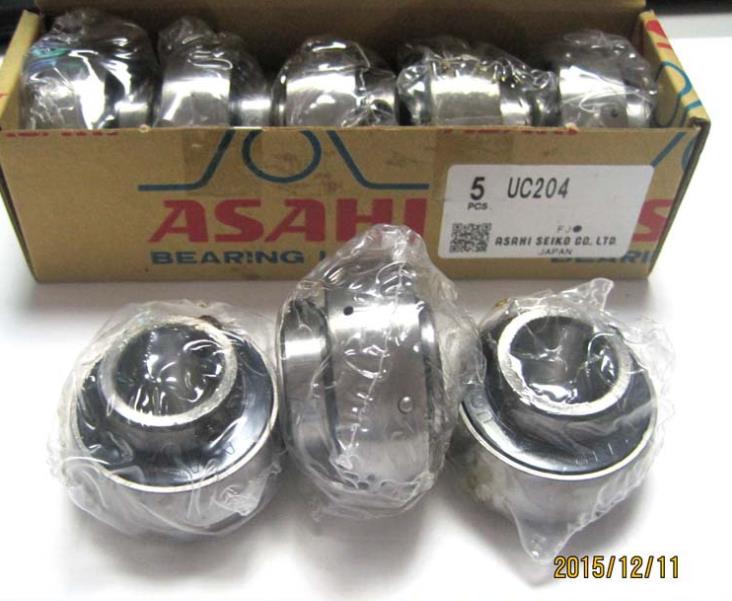

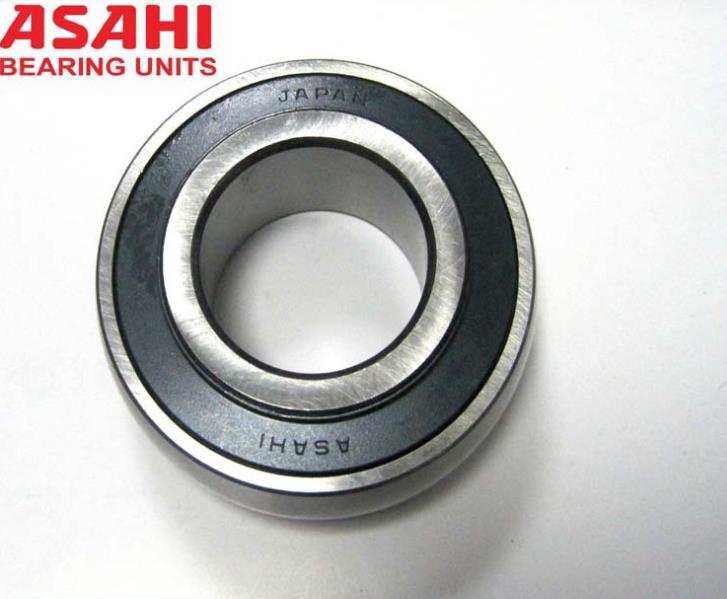

Asahi uc204 insert ball bearing(insert bearing with housing/Pillow Block Bearing) is the rolling bearing and bearing seat together a bearing unit. Most particularly the spherical bearing are made spherical outer diameter, and the imported bearing with spherical inner hole to install together, variety structure, good versatility and interchangeability. At the same time, this kind of bearing in design also has a certain adjustable mind, easy to install, has a dual structure of sealing device, can work under harsh environment. Bearing is usually is made of casting forming.Commonly used with vertical(P),(F),the square convex square stands(FS),circular convex(FC),diamond(FL),ring(C),slider(T),etc.

Asahi uc204 insert ball bearing Advantages:

1) Supreme load capacity and accuracy

2) Rational self-aligning mechanism and optimal fit

3) Superior sealing performance

4) Simple lubrication

5) Highly rigid and rugged cast iron housings

6) Simple installation and handling

Bearing No.	d	D	Bi	Be	n	m	G	ds	Weight
Bearing No.	d	D	Bi	Be	n	m	G	mm	(kg)
UC202	15	40	27.4	14	11.5	15.9	4.5	M5×0.8	0.14
UC203	17	40	27.4	14	11.5	15.9	4.5	M5×0.8	0.13
UC204	20	47	31	17	12.3	18.7	5	M6×1.0	0.18
UC205	25	52	34.1	17	14.3	19.8	5	M6×1.0	0.22
UC206	30	62	38.1	19	15.9	22.2	5	M6×1.0	0.34
UC207	35	72	42.9	20	17.5	25.4	7	M8×1.0	0.52
UC208	40	80	49.2	21	19	30.2	8	M8×1.0	0.68
UC209	45	85	49.2	22	19	30.2	8	M8×1.0	0.78
UC210	50	90	51.6	22	19	32.6	10	M10×1.25	0.85
UC211	55	100	55.6	25	22.2	33.4	10	M10×1.25	1.22
UC212	60	110	65.1	27	25.4	39.7	10	M10×1.25	1.65
UC213	65	120	65.1	29	25.4	39.7	10	M10×1.25	1.96
UC214	70	125	74.6	30	30.2	44.4	12	M12×1.5	2.06
UC215	75	130	77.8	30	33.3	44.5	12	M12×1.5	2.3
UC216	80	140	82.6	33	33.3	49.3	12	M12×1.5	2.79
UC217	85	150	85.7	35	34.1	51.6	12	M12×1.5	3.59
UC218	90	160	96	37	39.7	56.3	12	M12×1.5	4.45
UC220	100	180	108	41					4.56
