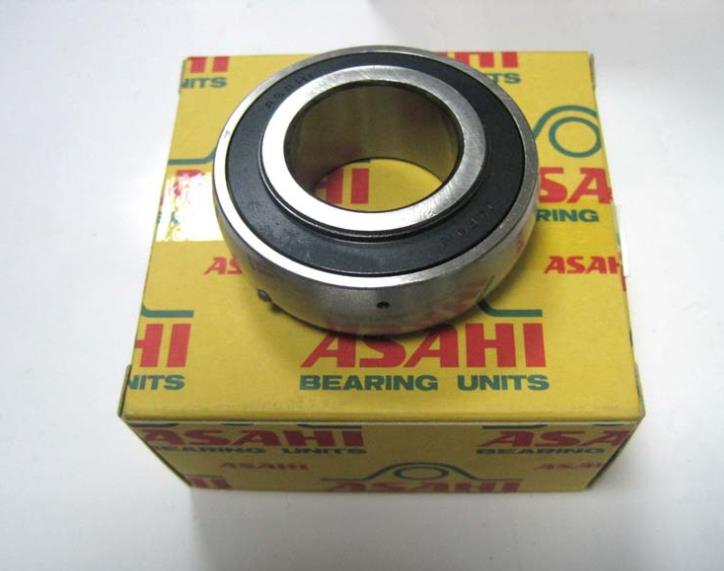

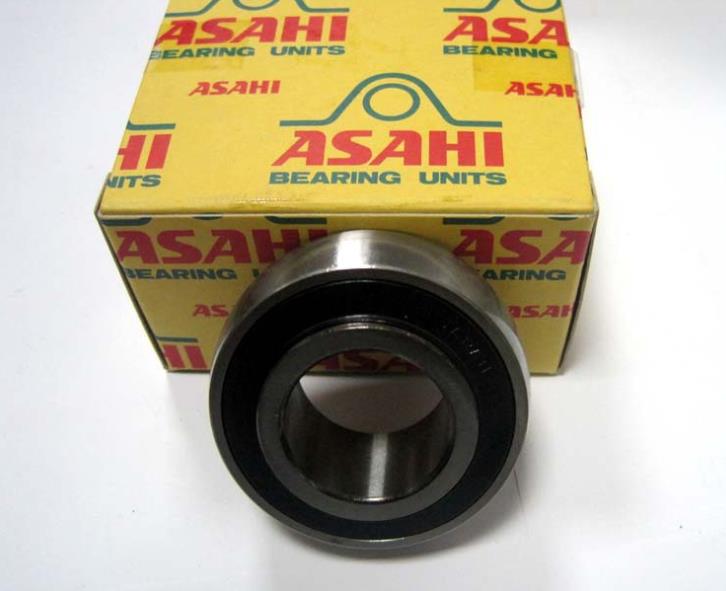

Pillow block bearing UK208+H2308 Photos
Pillow block bearing UK relative series
| Bearing Model | Dimension (mm) | Weight(Kg) |
Dynamic Load Cr(KN) |
Static Load Cor(KN) |
Limit Speed (r/min) |
||||||||
| New | Old | d0 | dZ | D | D1 | B3 | B | B2 | C | ||||
| UK205+H2305 | 290504 | 20 | 25 | 52 | 38 | 35 | 26 | 8 | 17 | 0.25 | 10.78 | 6.98 | 3400 |
| UK206+H2306 | 290505 | 25 | 30 | 62 | 45 | 38 | 28 | 8 | 19 | 0.36 | 14.97 | 10.04 | 2800 |
| UK207+H2307 | 290506 | 30 | 35 | 72 | 52 | 43 | 30 | 9 | 20 | 0.57 | 19.75 | 13.67 | 2400 |
| UK208+H2308 | 290507 | 35 | 40 | 80 | 58 | 46 | 31 | 10 | 21 | 0.74 | 22.71 | 15.94 | 2200 |
| UK209+H2309 | 290508 | 40 | 45 | 85 | 65 | 50 | 33 | 11 | 22 | 0.83 | 24.36 | 17.71 | 1900 |
| UK210+H2310 | 290509 | 45 | 50 | 90 | 70 | 55 | 35 | 12 | 24 | 0.97 | 26.98 | 19.84 | 1800 |
| UK211+H2311 | 290510 | 50 | 55 | 100 | 75 | 59 | 39 | 12 | 25 | 1.26 | 33.37 | 25.11 | 1600 |
| UK212+H2312 | 290511 | 55 | 60 | 110 | 80 | 62 | 41 | 13 | 27 | 1.59 | 36.74 | 27.97 | 1500 |
| UK213+H2313 | 290512 | 60 | 65 | 120 | 85 | 65 | 41.5 | 14 | 27 | 2.00 | 44.01 | 34.18 | 1400 |
| UK215+H2315 | 290513 | 65 | 75 | 130 | 98 | 73 | 44 | 15 | 30 | 2.56 | 50.85 | 41.26 | 1200 |
| UK216+H2316 | 290514 | 70 | 80 | 140 | 105 | 78 | 48 | 17 | 33 | 3.23 | 55.04 | 45.09 | 1100 |
| UK217+H2317 | 290515 | 75 | 85 | 150 | 110 | 82 | 50 | 18 | 36 | 3.93 | 64.01 | 53.28 | 1000 |
| UK218+H2318 | 290516 | 80 | 90 | 160 | 120 | 86 | 51 | 18 | 37 | 4.74 | 73.83 | 60.76 | 950 |
|
|
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
