Japan brand Asahi pillow block bearing ucfl205 25*130*35.8 mm for Transportation System

Products Visitors: 11130

Product Name: Japan brand Asahi pillow block bearing ucfl205 25*130*35.8 mm for Transportation System
Material: Gcr15 Chrome steel
Level: PO/P6/P5/P4/P2
Download: Japan brand Asahi pillow block bearing ucfl205 25*130*35.8 mm for Transportation System.pdf

Detailed Product Description: Japan brand Asahi pillow block bearing ucfl205 25*130*35.8 mm for Transportation System

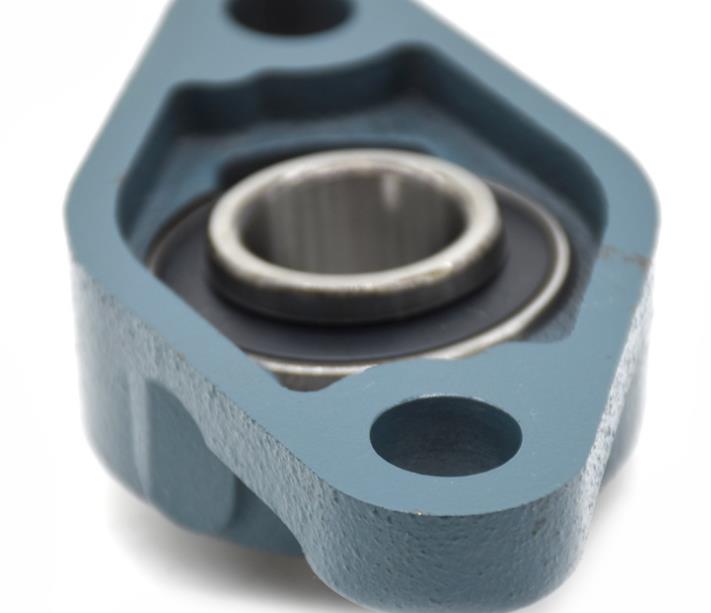

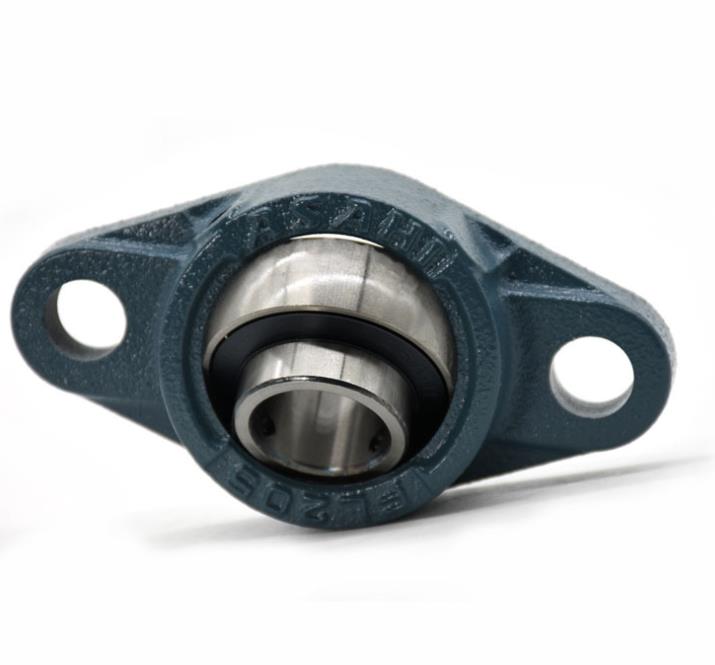

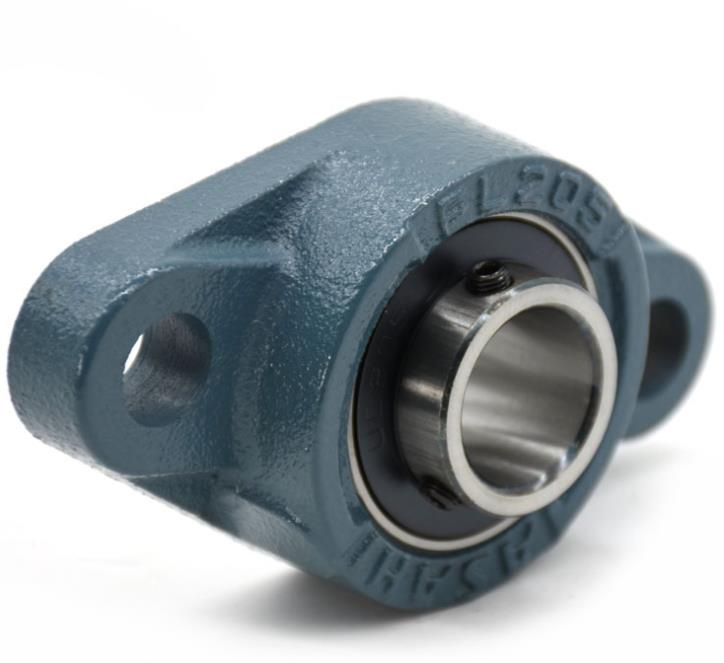

ASAHI Japan Pillow Block Bearing UCFL205 Insert

Bearing Units With Housing

Pillow block bearing are usually refferrd to the housings which have a bearing fitted
into them and thus the user need not purchase the bearings separately. supplied with a fully
sealed bearing insert fitted in the housing and includes a grease nipple to facilitate
re-lubrication.They are very easy to intall.

Unit No.	Dimensions mm											Bearing No.	Housing No.	Weight (kg)
Unit No.	d	a	e	i	g	I	s	z	t	B	n	Bearing No.	Housing No.	Weight (kg)
UCFL201	12	113	90	15	11	26	12	33	38	31	13	UC201	FL204	0.45
UCFL202	15	113	90	15	11	26	12	33	38	31	13	UC202	FL204	0.44
UCFL203	17	113	90	15	11	26	12	33	38	31	13	UC203	FL204	0.43
UCFL204	20	113	90	15	11	26	12	33	38	31	13	UC204	FL204	0.41
UCFL205	25	130	99	16	13	27	16	36	40	34	14	UC205	FL205	0.58
UCFL206	30	148	117	18	13	31	16	40	45	38	16	UC206	FL206	0.86
UCFL207	35	161	130	19	14	34	16	44	49	43	18	UC207	FL207	1.08
UCFL208	40	175	144	21	14	36	16	51	56	49	19	UC208	FL208	1.44
UCFL209	45	188	148	22	15	38	19	52	57	49	19	UC2059	FL209	1.74
UCFL210	50	197	157	22	15	40	19	55	60	52	19	UC210	FL210	2.1
UCFL211	55	224	184	25	18	43	19	58	63	56	22	UC211	FL211	2.91
UCFL212	60	250	202	29	18	48	23	69	74	65	25	UC212	FL212	3.74
UCFL213	65	258	210	30	22	50	23	70	75	65	25	UC213	FL213	4.57
UCFL214	70	265	216	31	22	54	23	75		75	30	UC214	FL214	5.11
UCFL215	75	275	225	34	22	56	23	79		78	33	UC215	FL215	5.37
UCFL216	80	290	233	34	22	58	25	83		83	33	UC216	FL216	7.2
UCFL217	85	305	248	36	24	63	25	88		86	34	UC217	FL217	8.61
UCFL218	90	320	265	40	24	68	25	96		96	40	UC218	FL218	10.51
