Dimensions: 20*26*26 mm/Metric
ID (inner diameter)/Bore=20mm
OD (outer diameter)=26mm
Width/Height/thickness=26mm

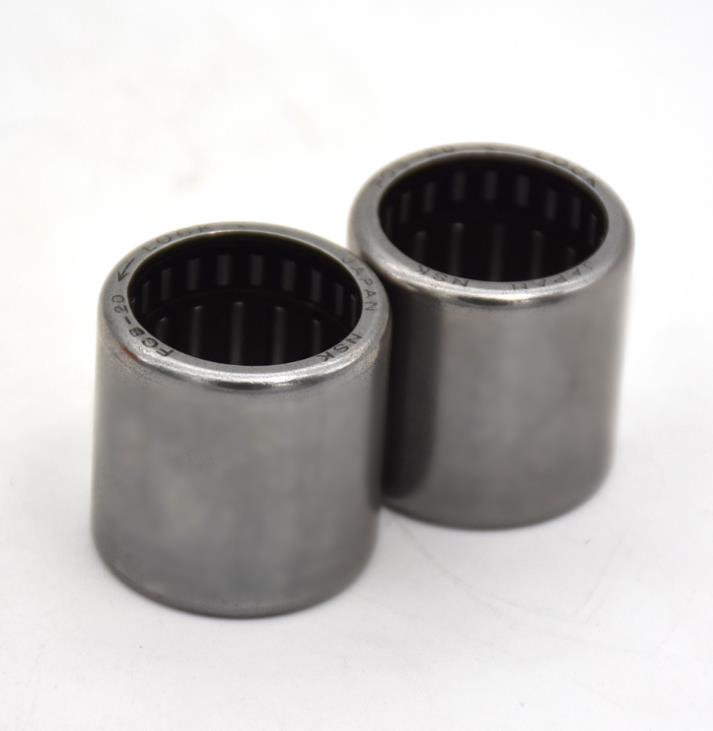

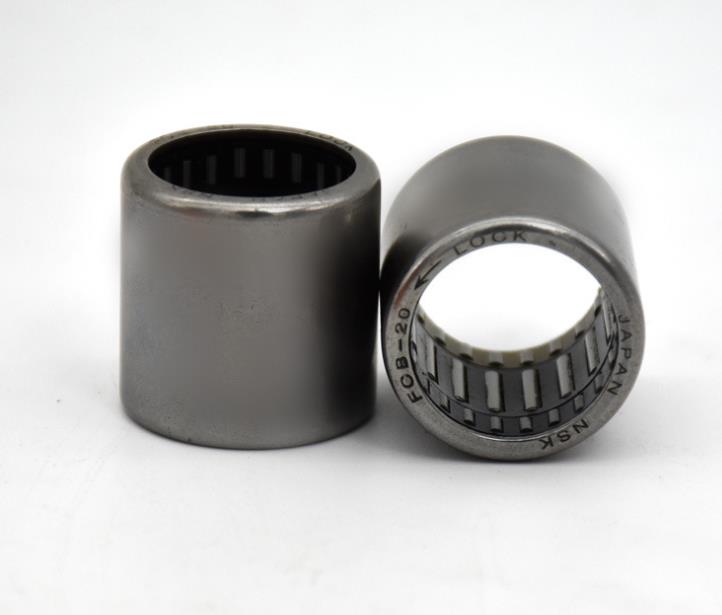

Item: Needle Roller Bearing One Way Shell Type HFL-2026
Size: 20mm x 26mm x 26mm
Type: Needle Roller Bearing
Parameter of HFL series drawn cup one way needle roller clutch bearing
| Shaft Dia. | Clutch Designation | Mass | Dimensions | Torque | Limiting Speed |
Basic Load Ratings |
|||||
| Fw | D | C |
Shaft Rotating |
Outer Ring Rotating |
C | Co | |||||
| Min-1 | Min-1 | KN | |||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
