SKF NU2308 ECP single row Cylindrical roller bearing Removable Inner Ring 40X90X33MM

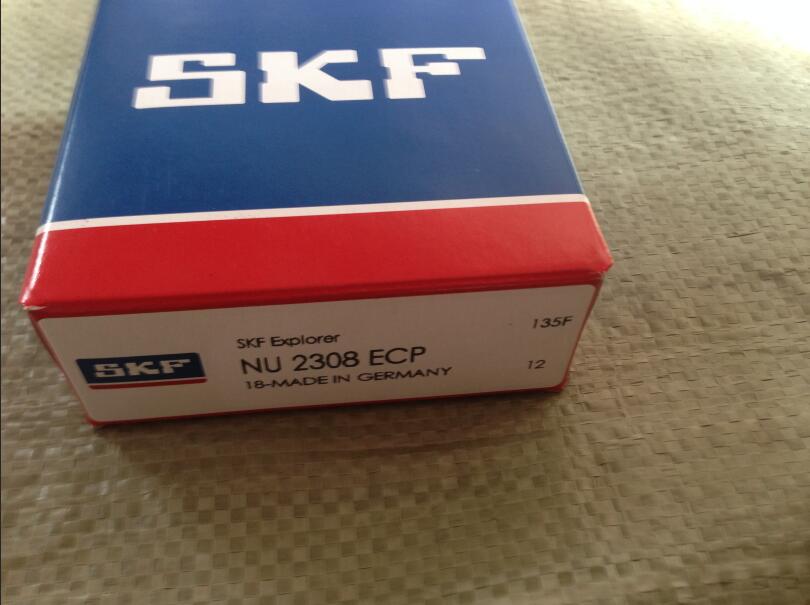

SKF NU2308 ECP single row Cylindrical roller bearing Removable Inner Ring 40X90X33MM

Products Visitors: 6790

Product Name: SKF NU2308 ECP single row Cylindrical roller bearing Removable Inner Ring 40X90X33MM
Material: GCr15 bearing steel
Level: P0 P6 P5 P4
Download: SKF NU2308 ECP single row Cylindrical roller bearing Removable Inner Ring 40X90X33MM.pdf

Detailed Product Description: SKF NU2308 ECP single row Cylindrical roller bearing Removable Inner Ring 40X90X33MM

SKF cylindrical roller bearing NU 2308 ECP, the cylindrical rollers are in linear contact with the raceway, with a high capability to bear radial load, which is suitable for both heavy and impact load and high-speed rotation.

Single row cylindrical roller bearings NU 2308 ECP can accommodate heavy radial loads and high speeds. These bearings are mainly used for medium and large motors, generators, internal combustion engines, machine tool main shafts, speed reducers, loading, unloading and handling machineries, various industrial machineries.

The rollers in a single row cylindrical roller bearing NU 2308 ECP are always guided between the integral "open" flanges on one of the rings. These "open" flanges combined with the specially designed and surface treated roller ends, provide improved lubrication, reduced friction and consequently lower operating temperature.

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d	D	B	C	C0	Pu
mm			kN		kN	r/min
35	72	17	56	48	6.1	11000	12000	NU 207 ECPH
35	100	25	76.5	69.5	9	8000	9500	NJ 407
35	72	17	56	48	6.1	11000	12000	NJ 207 ECPH
35	72	17	56	48	6.1	11000	12000	NUP 207 ECJ
35	72	17	56	48	6.1	11000	12000	NUP 207 ECP
35	80	31	106	98	12.7	9500	11000	NJ 2307 ECP
35	100	25	76.5	69.5	9	8000	9500	NU 407
35	72	23	69.5	63	8.15	11000	12000	NJ 2207 ECP
35	72	23	69.5	63	8.15	11000	12000	NJ 2207 ECJ
35	80	21	75	63	8.15	9500	11000	NUP 307 ECJ
35	80	21	75	63	8.15	9500	11000	NUP 307 ECP
35	80	21	75	63	8.15	9500	11000	NF 307 ECP
35	72	23	69.5	63	8.15	11000	12000	NUP 2207 ECP
35	80	21	75	63	8.15	9500	11000	NU 307 ECPH
35	62	14	35.8	38	4.55	13000	13000	NU 1007 ECPH
35	80	21	75	63	8.15	9500	11000	NU 307 ECJ
35	80	21	75	63	8.15	9500	11000	NU 307 ECP
35	80	31	106	98	12.7	9500	11000	NJ 2307 ECPH
35	80	31	106	98	12.7	9500	11000	NU 2307 ECJ
35	80	31	106	98	12.7	9500	11000	NU 2307 ECP
35	72	23	69.5	63	8.15	11000	12000	NU 2207 ECPH
35	72	23	69.5	63	8.15	11000	12000	NJ 2207 ECPH
35	72	17	56	48	6.1	11000	12000	NU 207 ECJ
35	72	17	56	48	6.1	11000	12000	NU 207 ECP
35	80	21	75	63	8.15	9500	11000	NJ 307 ECP
35	72	23	69.5	63	8.15	11000	12000	NJ 2207 ECNJ
35	80	21	75	63	8.15	9500	11000	NJ 307 ECJ
35	72	17	56	48	6.1	11000	12000	NJ 207 ECP
35	72	17	56	48	6.1	11000	12000	NJ 207 ECJ
35	80	31	106	98	12.7	9500	11000	NUP 2307 ECP
35	62	14	35.8	38	4.55	13000	13000	NU 1007 ECP
35	80	31	106	98	12.7	9500	11000	NU 2307 ECPH
35	72	23	69.5	63	8.15	11000	12000	NU 2207 ECP
35	72	23	69.5	63	8.15	11000	12000	NU 2207 ECJ
40	90	23	93	78	10.2	8000	9500	N 308 ECP
40	110	27	96.8	90	11.6	7000	8500	NJ 408
40	80	18	62	53	6.7	9500	11000	NJ 208 ECPH
40	90	33	129	120	15.3	8000	9500	NU 2308 ECP
40	80	23	81.5	75	9.65	9500	11000	NJ 2208 ECPH
40	90	33	129	120	15.3	8000	9500	NU 2308 ECJ
40	80	18	62	53	6.7	9500	11000	N 208 ECPH
40	80	18	62	53	6.7	9500	11000	NU 208 ECKP
40	110	27	96.8	90	11.6	7000	8500	NU 408
40	90	33	129	120	15.3	8000	9500	NUP 2308 ECP
40	80	18	62	53	6.7	9500	11000	NU 208 ECPH
40	90	23	93	78	10.2	8000	9500	NUP 308 ECP
40	90	23	93	78	10.2	8000	9500	NU 308 ECPH
40	80	18	62	53	6.7	9500	11000	N 208 ECP
40	80	18	62	53	6.7	9500	11000	NUP 208 ECP
40	80	18	62	53	6.7	9500	11000	NUP 208 ECJ
40	90	33	129	120	15.3	8000	9500	NJ 2308 ECP
40	90	33	129	120	15.3	8000	9500	NJ 2308 ECJ
40	80	23	81.5	75	9.65	9500	11000	NUP 2208 ECP
40	80	23	81.5	75	9.65	9500	11000	NUP 2208 ECJ
40	80	23	81.5	75	9.65	9500	11000	NU 2208 ECPH
40	90	23	93	78	10.2	8000	9500	NU 308 ECJ
40	80	18	62	53	6.7	9500	11000	NJ 208 ECJ
40	90	23	93	78	10.2	8000	9500	NU 308 ECP
40	80	18	62	53	6.7	9500	11000	NJ 208 ECP
40	80	23	81.5	75	9.65	9500	11000	NJ 2208 ECJ
40	80	23	81.5	75	9.65	9500	11000	NJ 2208 ECP
40	80	18	62	53	6.7	9500	11000	NU 208 ECP
40	80	18	62	53	6.7	9500	11000	NU 208 ECJ
40	90	33	129	120	15.3	8000	9500	NU 2308 ECPH
40	90	23	93	78	10.2	8000	9500	NJ 308 ECJ
40	90	23	93	78	10.2	8000	9500	NJ 308 ECP
40	90	23	93	78	10.2	8000	9500	NJ 308 ECPH
40	80	23	81.5	75	9.65	9500	11000	NU 2208 ECP
40	90	33	129	120	15.3	8000	9500	NJ 2308 ECPH
40	80	23	81.5	75	9.65	9500	11000	NU 2208 ECJ
45	100	25	112	100	12.9	7500	8500	NU 309 ECJ
45	100	25	112	100	12.9	7500	8500	NU 309 ECP
45	85	23	85	81.5	10.6	9000	9500	NJ 2209 ECNJ
45	75	19	52.8	64	7.8	9000	11000	NJ 2009 ECP
45	100	36	160	153	20	7500	8500	NUP 2309 ECP
45	120	29	106	102	13.4	6700	7500	NJ 409
45	85	19	69.5	64	8.15	9000	9500	NUP 209 ECPH
45	85	23	85	81.5	10.6	9000	9500	NJ 2209 ECPH
45	100	25	112	100	12.9	7500	8500	NUP 309 ECP
45	100	25	112	100	12.9	7500	8500	NUP 309 ECJ
45	85	19	69.5	64	8.15	9000	9500	NU 209 ECP
45	85	19	69.5	64	8.15	9000	9500	NU 209 ECJ
45	85	19	69.5	64	8.15	9000	9500	NJ 209 ECPH
45	85	19	69.5	64	8.15	9000	9500	NJ 209 ECP
45	85	19	69.5	64	8.15	9000	9500	NJ 209 ECJ
45	85	23	85	81.5	10.6	9000	9500	NJ 2209 ECP
45	85	23	85	81.5	10.6	9000	9500	NJ 2209 ECJ
45	75	16	44.6	52	6.3	11000	11000	NU 1009 ECP
45	120	29	106	102	13.4	6700	7500	NU 409
45	85	23	85	81.5	10.6	9000	9500	NUP 2209 ECP
45	85	23	85	81.5	10.6	9000	9500	NU 2209 ECP
45	85	23	85	81.5	10.6	9000	9500	NU 2209 ECJ
45	100	25	112	100	12.9	7500	8500	NU 309 ECPH
45	100	25	112	100	12.9	7500	8500	NU 309 ECNP
45	100	25	112	100	12.9	7500	8500	NJ 309 ECPH
45	100	25	112	100	12.9	7500	8500	NUP 309 ECNP
45	85	23	85	81.5	10.6	9000	9500	NU 2209 ECPH
45	100	36	160	153	20	7500	8500	NU 2309 ECP
45	85	19	69.5	64	8.15	9000	9500	NUP 209 ECJ
45	85	19	69.5	64	8.15	9000	9500	NUP 209 ECP
