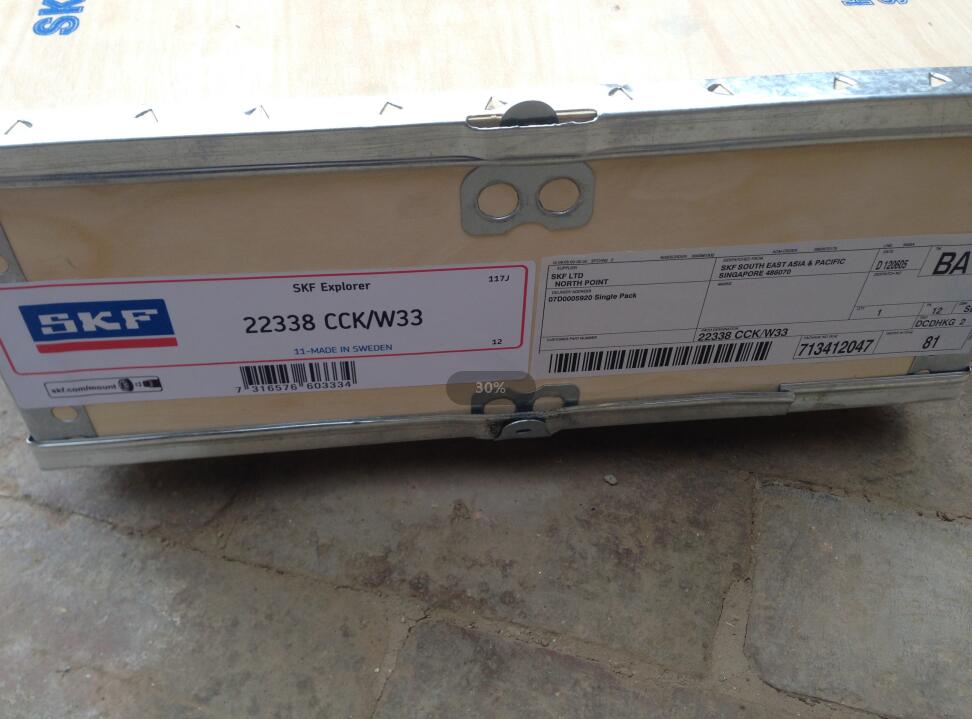

| Item Name | Original SKF Spherical Roller Bearing 22338CC/W33 |
| d | 190mm |
| D | 400mm |
| B | 132mm |
| Bearing Weight | 84.2KG |
| Precision | P0 P5 P6 P4 P2 |
| Material | Chrome steel, Gcr15 steel |
| Guarantee | One year |
| Delivery Detail | 1-2 days upon receipt of deposit |
| Bearing Advantage |
1).Excellent and high quality control 2).Prompt delivery 3).Competitive price 4).Small order accepted 5).Customers' drawing or samples accepted 6).OEM service |
1.Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer Spherical Roller Bearing
CA: Symmetrical roller, one-pice brass cage Spherical Roller Bearing
CTN1: Symmetrical roller, nylon cage Spherical Roller Bearing
E: Third generation design. improved stress distribution; offer much longer service life than normal designs Spherical Roller Bearing
Q: Bronze cage Spherical Roller Bearing
MB: Symmetrical roller,Two-pice brass cage Spherical Roller Bearing
EM: Symmetrical roller, Special alloy Integral cage.Spherical Roller Bearing
2.External form change
K: Tapered bore bearing,taper is 1:12 Spherical Roller Bearing
K30: Tapered bore bearing,taper is 1:30 Spherical Roller Bearing
N: A snap ring groove on the outer ring Spherical Roller Bearing
W33: There are three lubrication groove and three lubrication holes in the outer ring
3. Ring high-temperature tempering
S0: Work temperature up to 150 degrees Celsius.Spherical Roller Bearing
S1: Work temperature up to 200 degrees Celsius.Spherical Roller Bearing
S2: Work temperature up to 250 degrees Celsius.Spherical Roller Bearing
S3: Work temperature up to 300 degrees Celsius.Spherical Roller Bearing
S4: Work temperature up to 350 degrees Celsius.Spherical Roller Bearing
4. Clearance
C0:Norminal clearance,omitted in destination Spherical Roller Bearing
C2:Less than Norminal clearance Spherical Roller Bearing
C3:Larger clearance than C0 Spherical Roller Bearing
C4: Larger clearance than C3 Spherical Roller Bearing
C5: Larger clearance than C3 Spherical Roller Bearing
C9:Special Clearance Spherical Roller Bearing
| Bearing No. | I.D. mm | O.D. mm | Thickness mm |
| 22319 CCK/W33 | 95 | 200 | 67 |
| 22320 CCK/W33 | 100 | 215 | 73 |
| 22322 CCK/W33 | 110 | 240 | 80 |
| 22324 CCK/W33 | 120 | 260 | 86 |
| 22326 CCK/W33 | 130 | 280 | 93 |
| 22328 CCK/W33 | 140 | 300 | 102 |
| 22330 CCK/W33 | 150 | 320 | 108 |
| 22332 CCK/W33 | 160 | 340 | 114 |
| 22334 CCK/W33 | 170 | 360 | 120 |
| 22336 CCK/W33 | 180 | 380 | 126 |
| 22338 CCK/W33 | 190 | 400 | 132 |
| 22340 CCK/W33 | 200 | 420 | 138 |
| 22344 CCK/W33 | 220 | 460 | 145 |
| 22348 CCK/W33 | 240 | 500 | 155 |
| 22352 CCK/W33 | 260 | 540 | 165 |
| 22356 CCK/W33 | 280 | 580 | 175 |
| 24024 CCK30/W33 | 120 | 180 | 60 |
| 24026 CCK30/W33 | 130 | 200 | 69 |
| 24028 CCK30/W33 | 140 | 210 | 69 |
| 24030 CCK30/W33 | 150 | 225 | 75 |
| 24032 CCK30/W33 | 160 | 240 | 80 |
| 24034 CCK30/W33 | 170 | 260 | 90 |
| 24036 CCK30/W33 | 180 | 280 | 100 |
| 24038 CCK30/W33 | 190 | 290 | 100 |
| 24040 CCK30/W33 | 200 | 310 | 109 |
| 24044 CCK30/W33 | 220 | 340 | 118 |
| 24048 CCK30/W33 | 240 | 360 | 118 |
| 24052 CACK30/W33 | 260 | 400 | 140 |
| 24056 CACK30/W33 | 280 | 420 | 140 |
| 24060 CACK30/W33 | 300 | 460 | 160 |
| 24064 CACK30/W33 | 320 | 480 | 160 |
| 24068 CACK30/W33 | 340 | 520 | 180 |
| 24072 CACK30/W33 | 360 | 540 | 180 |
| 24076 CACK30/W33 | 380 | 560 | 180 |
| 24080 CACK30/W33 | 400 | 600 | 200 |
| 24084 CACK30/W33 | 420 | 620 | 200 |
| 24088 CACK30/W33 | 440 | 650 | 212 |
| 24092 CACK30/W33 | 460 | 680 | 218 |
| 24096 CACK30/W33 | 480 | 700 | 218 |
| 240/500 CACK30/W33 | 500 | 420 | 218 |
| 240/530 CACK30/W33 | 530 | 780 | 250 |
| 24122 CCK30/W33 | 110 | 180 | 69 |
| 24124 CCK30/W33 | 120 | 200 | 80 |
| 24126 CCK30/W33 | 130 | 210 | 80 |
| 24128 CCK30/W33 | 140 | 225 | 85 |
| 24130 CCK30/W33 | 150 | 250 | 100 |
| 24132 CCK30/W33 | 160 | 270 | 109 |
| 24134 CCK30/W33 | 170 | 280 | 109 |
| 24136 CCK30/W33 | 180 | 300 | 118 |
| 24138 CCK30/W33 | 190 | 320 | 128 |
| 24140 CCK30/W33 | 200 | 340 | 140 |
| 24144 CCK30/W33 | 220 | 370 | 150 |
| 24148 CCK30/W33 | 240 | 400 | 160 |
| 24152 CACK30/W33 | 260 | 440 | 180 |
| 24156 CACK30/W33 | 280 | 460 | 180 |
| 24160 CACK30/W33 | 300 | 500 | 200 |
|
|
|
|
||||
|
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
