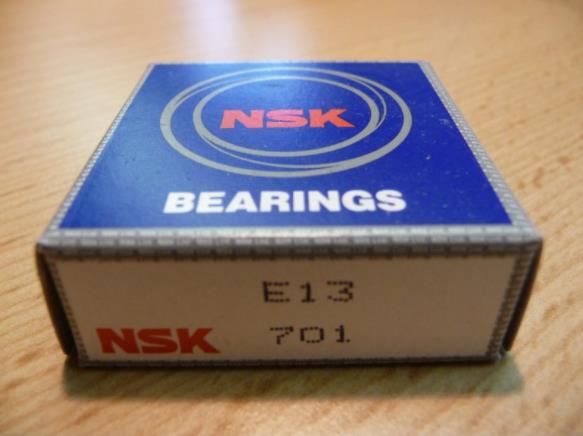

This E13 bearing is a Open Type Magneto Ball Bearing with a standard radial internal clearance. The bearing's dimensions are 13x30x7.
| E | 13 |
|---|---|
| Single Row Magneto Bearing | 13mm - Bore Size |
| Dimensions (mm) | Weight (kg) | Brand | ||
|---|---|---|---|---|
| d | D | B | ||
| 13 | 30 | 7 | 0.022 |  |
| Basic Dynamic Load Rating (kN) | Limiting Speeds (r/min) | ||
|---|---|---|---|
| Dynamic | Static | Grease | Oil |
| 3570 | 750 | 25000 | 31200 |
Schulterkugellager Magneto Bearing Models:
| E series | EN Series | d | D | B,T | r | r1 | Dynamic | Static |
| C | C0 | |||||||
| E4 | EN4 | 4 | 16 | 5 | 0.3 | 0.2 | 122 | 24 |
| E5 | EN5 | 5 | 16 | 5 | 0.3 | 0.2 | 122 | 24 |
| E6 | EN6 | 6 | 21 | 7 | 0.5 | 0.3 | 224 | 40 |
| E7 | EN7 | 7 | 22 | 7 | 0.5 | 0.3 | 254 | 40 |
| 708 | 8 | 22 | 7 | 0.5 | 0.3 | 255 | 54 | |
| E8 | EN8 | 8 | 24 | 7 | 0.5 | 0.3 | 255 | 54 |
| 6028 | 8 | 24 | 8 | 0.5 | 0.3 | 255 | 54 | |
| E9 | EN9 | 9 | 28 | 8 | 0.5 | 0.3 | 335 | 73 |
| E10 | EN10 | 10 | 28 | 8 | 0.5 | 0.3 | 335 | 73 |
| E11 | EN11 | 11 | 32 | 7 | 0.5 | 0.3 | 270 | 75 |
| E12 | EN12 | 12 | 32 | 7 | 0.5 | 0.3 | 270 | 75 |
| E13 | EN13 | 13 | 30 | 7 | 0.5 | 0.3 | 270 | 75 |
| E14 | EN14 | 14 | 35 | 8 | 0.5 | 0.3 | 450 | 110 |
| 7202 | 15 | 35 | 11 | 0.5 | 0.3 | 355 | 102 | |
| E15 | EN15 | 15 | 35 | 8 | 0.5 | 0.3 | 355 | 102 |
| N3048 | - | 15 | 37 | 8 | 0.5 | 0.3 | 355 | 102 |
| BO15 | - | 15 | 40 | 10 | 1 | 0.6 | 570 | 153 |
| E16 | EN16 | 16 | 38 | 10 | 0.7 | 0.4 | 705 | 127 |
| L17 | - | 17 | 40 | 10 | 1 | 0.5 | 450 | 134 |
| E17 | EN17 | 17 | 44 | 11 | 1 | 0.6 | 440 | 134 |
| BO17 | - | 17 | 44 | 11 | 1 | 0.6 | 750 | 138 |
| M17 | - | 17 | 44 | 10 | 1 | 0.6 | 750 | 138 |
| E18 | EN18 | 18 | 40 | 9 | 0.7 | 0.4 | 270 | 95 |
| E19 | EN19 | 19 | 40 | 9 | 0.7 | 0.4 | 270 | 95 |
| E20 | EN20 | 20 | 47 | 12 | 1.5 | 1 | 580 | 224 |
| L20 | - | 20 | 47 | 14 | 1.5 | 0.7 | 580 | 224 |
| M20 | - | 20 | 52 | 15 | 2 | 1 | 965 | 270 |
| L25 | - | 25 | 52 | 15 | 1.5 | 1 | 565 | 240 |
| M25 | - | 25 | 62 | 17 | 1.1 | 0.6 | 1250 | 375 |
| L30 | - | 30 | 62 | 16 | 1.5 | 1 | 630 | 228 |
| M30 | - | 30 | 72 | 19 | 2 | 1.5 | 630 | 228 |
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
